LSENSR

LSENSR

Recommended for hostile environment where it is exposed to high vibration and immunity to electric fields is mandatory

Related Verticals

  • E-Mobility

    Rugged fiber optic temperature sensors for E-Mobility applications including Aerospace, Automotive and Battery testing applications.

    LEARN MORE
  • Industrial

    Rugged fiber optic temperature sensors designed for reliability. Delivers the best long term reliability and are intrinsically safe

    LEARN MORE
  • RF/Microwave

    Industrial grade fiber optic temperature sensors for harsh environments and microwave heating applications

    LEARN MORE
  • Food & Beverage

    High precision fiber optic temperature sensors for sterile environments. Designed to meet highest safety standards

    LEARN MORE

Summary Products

Recommended for hostile environment where it is exposed to high vibration and immunity to electric fields is mandatory

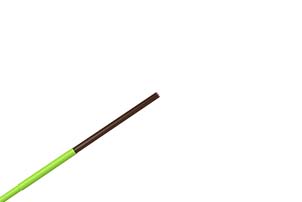

  • Industrial use with rigid polyimide tip, 1.7 mm diameter
  • Rugged tip ideal for Industrial application
  • Complete immunity to EMI/RFI/lightning
  • High vibration environments

Description

A multiuse fiber optic temperature sensor designed for a wide range of applications, especially for the use in demanding applications. The sensor offers complete immunity to RFI, EMI, NMR and microwave radiation. The standard temperature sensor  has a response time of 0.2 s. With a standard deviation of +/-0.2 °C it allows for precise and repeatable measurements. The coating of the temperature sensor is made of PTFE, and the fiber tip has a diameter of 1.7 mm with Rugged Polyimide coating and has a stainless steel ST-connector. For mechanical stability and applications e.g. in oil special protective coatings and hoses are available. The fiber optic probe consists of a PTFE protected glass fiber and a GaAs-crystal (Gallium Arsenide) at the sensor tip. It is totally free of metal and immune to external fields, therefore probes are explicitly suitable for the use in high temperature ranges as well as in aggressive operating environments. The sensor cable can be from  several meters to kilometers long without influencing the accuracy of the measurement result. Other sensor lengths and connector types are available upon request.

Applications

  • Industrial process control and monitoring applications
  • High voltage environments
  • Harsh and Hazardous environments
  • Temperature measurements conducted in confined spacesTemperature measurements conducted in confined spaces, bhazardous or strong EMI/RFI/MRI environments
  • Wood drying industry

Benefits

  • Sensors do not require any recalibration
  • Suitable for OEM-type applications
  • Available in different cables and sheath options
  • Robust fiber optic temperature sensor
  • Each sensor comes with a complete test certification
  • Robust packaging
  • No shift over time, high stability
  • Customizable according to customer specific applications

Technical Specifications

Temperature range-200 °C to +250 °C
Temperature range (Optional Range extensions) Down to 4 °K / Up to +300 °C
Repeatability0.2 °C
Accuracy absolute temperature+/- 0.8 °C
Accuracy relative temperature+/- 0.2 °C
Probe sheathing materialTeflon Coated, Rugged Polyimide protection for sensor tip
ConnectorStainless Alloy / Optional - Dielectric
Response timeUp to 0.2 Sec
Probe sensitive area - Diameter1.7 mm Diameter
LongevityProbe accuracy & repeatability constant over time

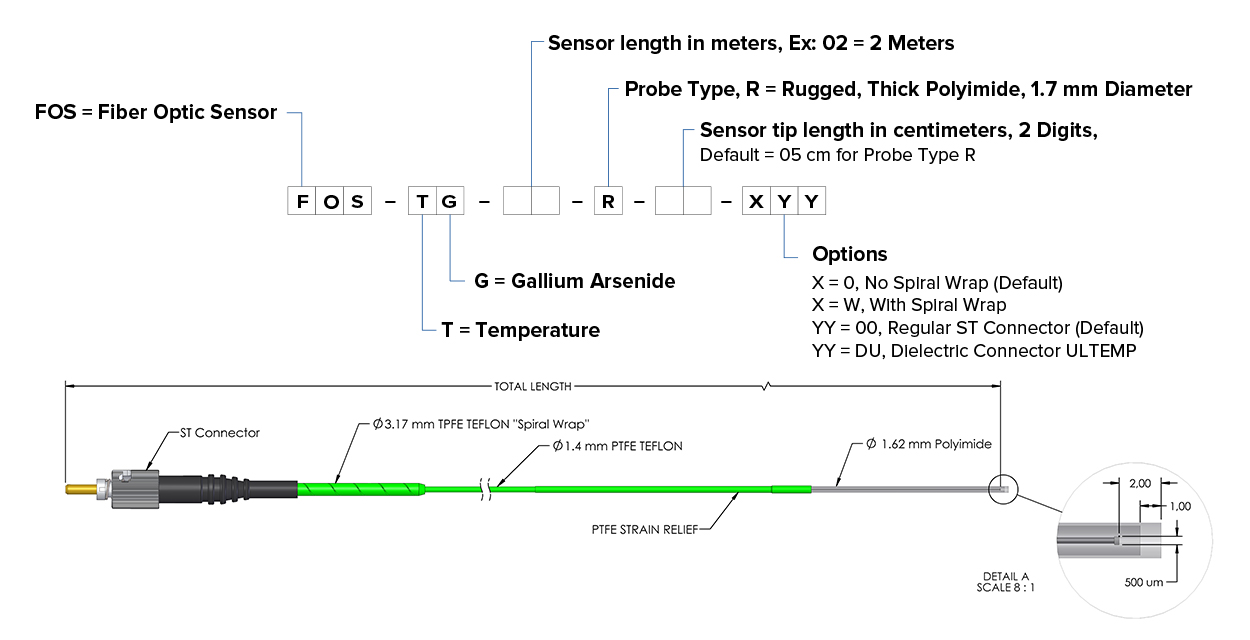

Ordering Code
