HSENS-CC

HSENS-CC

KEY FEATURES

  • Compact Size, Highly Sensitive, Capacitive Coupler for PD Testing and Monitoring
  • High Dielectric, Rugged, and Reliable design
  • Built-in overvoltage (transient) protection
  • Available for wide range of voltage levels 6kV to 45kV
  • 1pC PD Sensitivity (ASTM D1868 and IEC 60270)
  • Suitable for extreme environment, Hazardous (ATEX) applications
  • PD Free Sensor: No PD signals because of Sensor

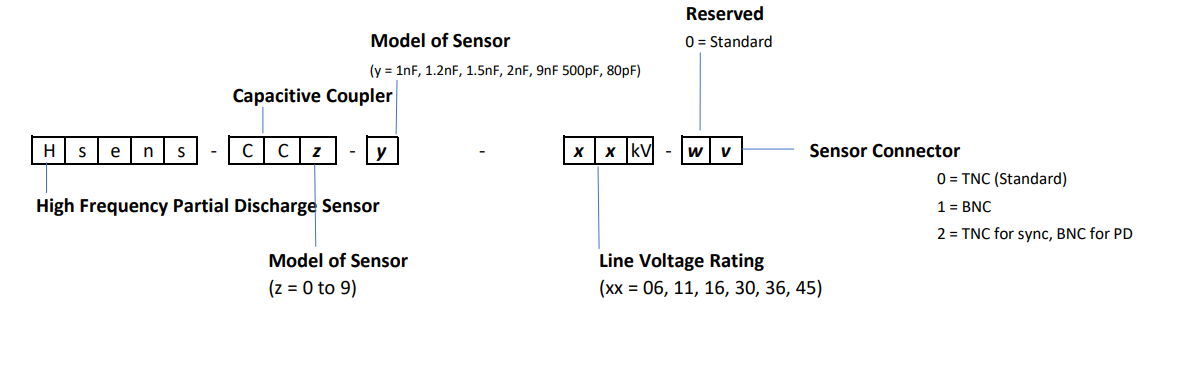

TECHNICAL SPECIFICATIONS
Capacitance
1nF, 1.2nF, 1.5nF, 2nF, 500pF, 80pF (Custom designed - Optional)
PD Sensitivity
1pC
Line Voltage Rating
6kV, 11kV, 16kV, 30kV, 45kV
Line Voltage Frequency
50Hz - 60Hz
Capacitor Type
Mica and Ceramic
Body Material
Epoxy Resin
Output Connection Type
TNC-Type connector; Customized option available
Vibration Testing
Suitable for Generator, Motor and Transformer applications
Withstand Voltages
20kV, 35kV, 70kV, 120kV
Ambient (Operating Temperature)
-40 °C to +85 °C
Storage Temperature
-40 °C to +85 °C
Operating Humidity
95% humidity at 50 °C
Dimensions (in mm)
As per Line Voltage rating; from 125(W) x 95(D) x 90(H) to 250(W) x 165(D) x 450(H
Weight
As per Line Voltage rating; from 0.5Kg. to 5.5Kg
Install Position
Installed on the study cast aluminum enclosure and connected to the Busbar
Signal Cable
Very low attenuation Coax cable, RG58
