USENS-BT

USENS-BT

Rugged and reliable design, IP65 rated, overvoltage protected, PD measurement at Transformer Bushings.

KEY FEATURES

  • Bushing PD sensor with wider frequency
  • Response range
  • HF and UHF frequency response
  • Rugged, reliable design with IP65 rating
  • Transient overvoltage protection integrated
  • Easy to Install

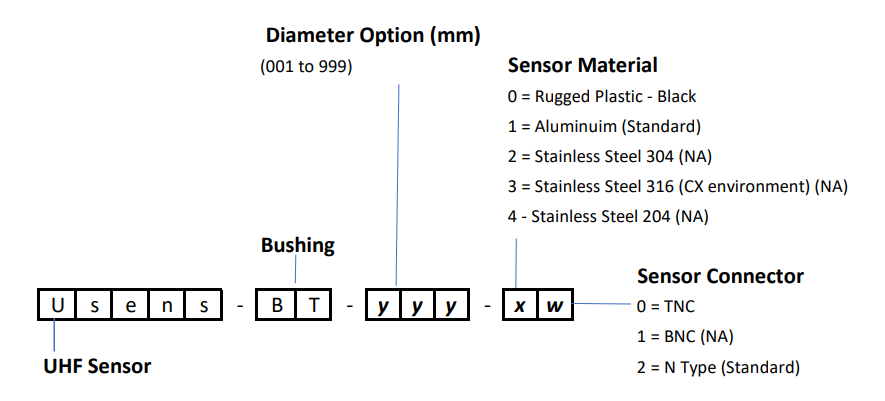

  • Different options of internal diameter dimensions

Rugged and reliable design, IP65 rated, overvoltage protected, PD measurement at Transformer Bushings.

UsensBT is suitable for High Frequency (HF) and Ultra High Frequency (UHF) PD signals. The Sensor is designed to be installed on transformer bushing trunk.
Sensor is IP65 rated and features integrated transient overvoltage protection inside sensor. Transient protection will help in minimizing transients that can be expected during PD monitoring.

  • Online periodic partial discharge monitoring
  • Online PD measurement during HV AC testing
  • Multiple point PD monitoring
  • Transient overvoltage protected
  • Noise immunity
  • IP65 rated
  • Rigorously tested
TECHNICAL SPECIFICATIONS
Frequency Response
30MHz - 1500MHz
Sensitivity
up to -70 dBm
Withstand Voltage
up to 1000 kV
Output
N-Type connector; Customized option available
Connector Circuit Impedance
50 Ω
Vibration Testing
Suitable for installation on Transformer Bushings
Ingress Protection (IP)
IP-65
Ambient (Operating Temperature)
-60 ⁰C to +100 ⁰C
Storage Temperature
-60 ⁰C to +100 ⁰C
Operating Humidity
95% humidity at 50 ⁰C
Dimensions
Customized as per Bushing Size
Weight
Customized as per Bushing Size
Install Position
Around Bushing Trunk
Signal Cable
Very low attenuation UHF (Coax) cable
