Wood Drying Application

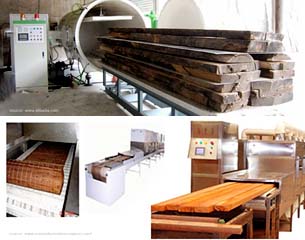

Solutions Summary
Benefits
Products used for this solution: Rugged Monitoring Products used in these applications
|
R501
Features
- Fully flexible rack mount and distributed architecture support
- Scalable and field upgradable from 02 channels to 256 channels with plug and play modules
- Expandable to add different analog and (or) digital inputs and outputs
- Best in class EMI, ESD Immunity; range of communication options and protocol support
- Range of communication options for third party system integration
Specifications
- Power Requirement
- 24V DC ( Default), Optional USB powered
- CANBUS Port
- CANBUS Master/Slave support for CAN Dataloggers
- Serail Port
- RS485 with Modbus support
- Number of Channels
- 2, 4, 6 and 8 channels
- Scan Rate
- 200 ms / channel ( Optional: Faster scanning rates available)
- Accuracy
- ±1.0 °C (±0.2 °C in relative temperature)
- Resolution
- 0.1 °C
- Measurement Range
- -80 °C to +300 °C (cryogenic 4 °K range optional)
TSENS
Features
- Optimized for easy installation in oil-filled and dry-type transformers and reactors
- Rugged and robust construction built to outlast your transformer life
- Outstanding repeatability, zero-drift GaAs technology
- 9 mm disc design, suitable for all locations in a transformer (windings, cores, busbars, tap changers, etc.)
- Solvent and chemical resistant
Specifications
- Longevity
- Probe accuracy and repeatability constant over time
- Response time
- Up to 0.2 sec without disc. About 2 sec with disc
- Probe length
- Up to 25 meters
- Connector
- Stainless Alloy ST / Optional - Dielectric Torlon
- Tip material
- Torlon (with disc) or Polyimide (no disc)
- Probe sheathing material
- Teflon spiral-wrap
- Accuracy relative temperature
- +/- 0.2 °C
- Accuracy absolute temperature
- +/- 0.8 °C
- Repeatability
- 0.2 °C
- Temperature range
- -200 °C to +250 °C
System Configuration
System Configuration Description -
In medicine, monitoring is the observation of a disease, condition or one or several medical parameters over time.
It can be performed by continuously measuring certain parameters by using a medical monitor (for example, by continuously measuring vital signs by a bedside monitor), and/or by repeatedly performing medical tests (such as blood glucose monitoring with a glucose meter in people with diabetes mellitus).
| Measurement Range | -80 °C to +300 °C (cryogenic 4 °K range optional) |
| FO Temp Probe for Central Winding - HV | 1 per Phase |
| FO Temp Probe for Central Winding - LV | 1 |
| FO Temp Probe for Central Winding - LV | 1 |
