HSENS-H

HSENS-H

The sensor is IP65-rated and integrated features of transient over-voltage protection inside the sensor. Transient protection will help in minimizing transients that can be expected during PD monitoring.

KEY FEATURES

  • High-Frequency Current Transformer
  • Rugged, reliable design
  • IP65 rated
  • Split core design for easy installation
  • Transient over-voltage protection integrated inside sensor
  • Different options for internal diameter dimensions
  • RG223 high noise immunity cable
  • TNC connector for reliable connection

Rugged Monitoring’s High-Frequency Current Transformer sensor HSENS-H is a split core and an inductive type sensor that can be clamped around the earth (ground) shield to measure PD signals.

Based on the power cable termination condition, an HFCT sensor can also be clamped around cable insulation without the earth shield or around the cable with the earth shield looped back to measure PD. For HFCT clamped around the cable insulation without an earth shield or cable with an earth shield looped back, a high current variant can be used for a rated load current of cableThe sensor is IP65-rated and integrated features of transient over-voltage protection inside the sensor. Transient protection will help in minimizing transients that can be expected during PD monitoring.

  • Online periodic partial discharge monitoring
  • Offline PD measurement during HV AC testing
  • Multiple-point PD monitoring
  • Cables, joints and terminations
  • Rotating machines
  • AIS/GIS switchgear
  • Power transformers
  • Transient overvoltage protected
  • Noise immunity
  • IP65 rated
  • Rigorously tested
  • Split core for easy installation
  • Stainless steel robust latch to keep split core closed
  • Customizable according to the customer-specific applications
  • Suitable for Online or Offline PD measurements



TECHNICAL SPECIFICATIONS
Type
Split Core
SENSOR
Typical Frequency Response (-6dB)
100 kHz-25 MHz
Material
Rugged Plastic (Black), Other options available
Current Ratings
50 A, other options available

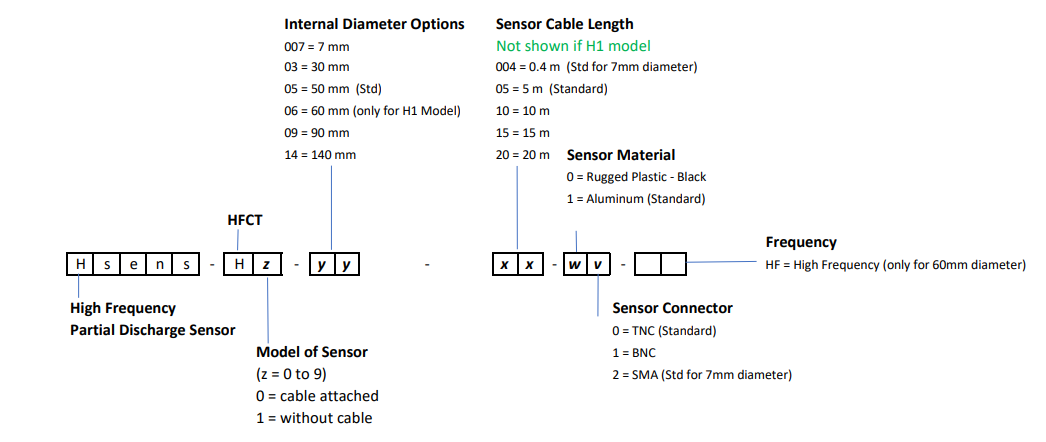

MODELS
HFCT-3
220 mm (L) x 118 mm (W) x 33 mm(H) (ID=30 mm)
HFCT-9
220 mm (L) x 163 mm (W) x 28 mm (H) (ID=30 mm)
HFCT-14
330 mm (L) x 275 mm (W) x 38 mm (H) (ID=140 mm)
SIGNAL CABLE
Type
RG223
Connectors
Cable Gland (Sensor End) and TNC connector (Monitor End), other options available
Cable Length
5m, other options available
IP Rating
IP65
TEMPERATURE
Ambient
-30˚C - 70 ˚C
Storage
-40˚C - 85 ˚C
