CIRCUIT BREAKERS MONITORING SYSTEM

Cutting-edge solutions for safe and reliable circuit breakers

Circuit Breakers play a pivotal role in safeguarding critical assets, such as power transformers by physically interrupting the flow of electrical power when necessary. Monitoring these circuit breakers is essential for ensuring the proper functioning and timely response to potential faults or overloads.

WHY ASSET MONITORING

Customized Circuit Breakers Monitoring Solutions

Circuit breakers are important in safeguarding critical assets against abnormal electrical conditions across various applications, from residential homes to high-voltage transmission systems. Continuous monitoring allows for early detection of any issues, or deterioration in performance, enabling proactive maintenance measures to be taken.

Early Issue Detection

Continuous monitoring of critical parameters enables condition monitoring systems to identify potential issues at an early stage. This proactive approach allows operators to schedule maintenance proactively, reducing downtime and avoiding costly repairs. By addressing problems before they escalate, businesses can maintain operational efficiency and minimize disruptions.

Preventive Maintenance

Equipped with real-time data on machine health, operators can implement preventive maintenance schedules based on the actual condition of circuit breakers rather than implement them in fixed time intervals. This targeted approach optimizes maintenance efforts and minimizes the risk of unexpected failures.

Performance Optimization

Monitoring the condition of breakers enables operators to identify inefficiencies or abnormalities in operation. Promptly addressing these issues optimizes machine performance, ensuring they operate at peak efficiency. By optimizing performance, businesses can improve productivity and reduce energy consumption.

Enhanced Reliability

Regular monitoring ensures that Breakers operate reliably and consistently over time. By detecting and addressing potential faults early, the risk of unexpected failures is reduced, resulting in improved reliability and uptime. Businesses can rely on their equipment to perform consistently, minimizing disruptions to operations.

Extended Lifespan

Proactive maintenance based on condition monitoring data can extend the lifespan of circuit breakers. By addressing issues before they cause damage or degradation, machines can operate for longer periods without the need for replacement. This prolongs the useful life of assets and reduces capital expenditures on new equipment.

Cost Savings

By minimizing downtime, optimizing performance, and extending the lifespan of circuit breakers, condition monitoring ultimately leads to cost savings for operators. The investment in monitoring technology is often offset by reductions in maintenance costs and improved operational efficiency. By maximizing the value of their assets, businesses can achieve greater profitability and competitiveness in the market.

WHY RM?

CONSISTENT PERFORMANCE IN HARSH CONDITIONS.

Modular Design

Accurate Measurements

Engineered for Excellence

Seamless Integration

Reliability Redefined

High Precision

Plug and Play Efficiency

No recalibration

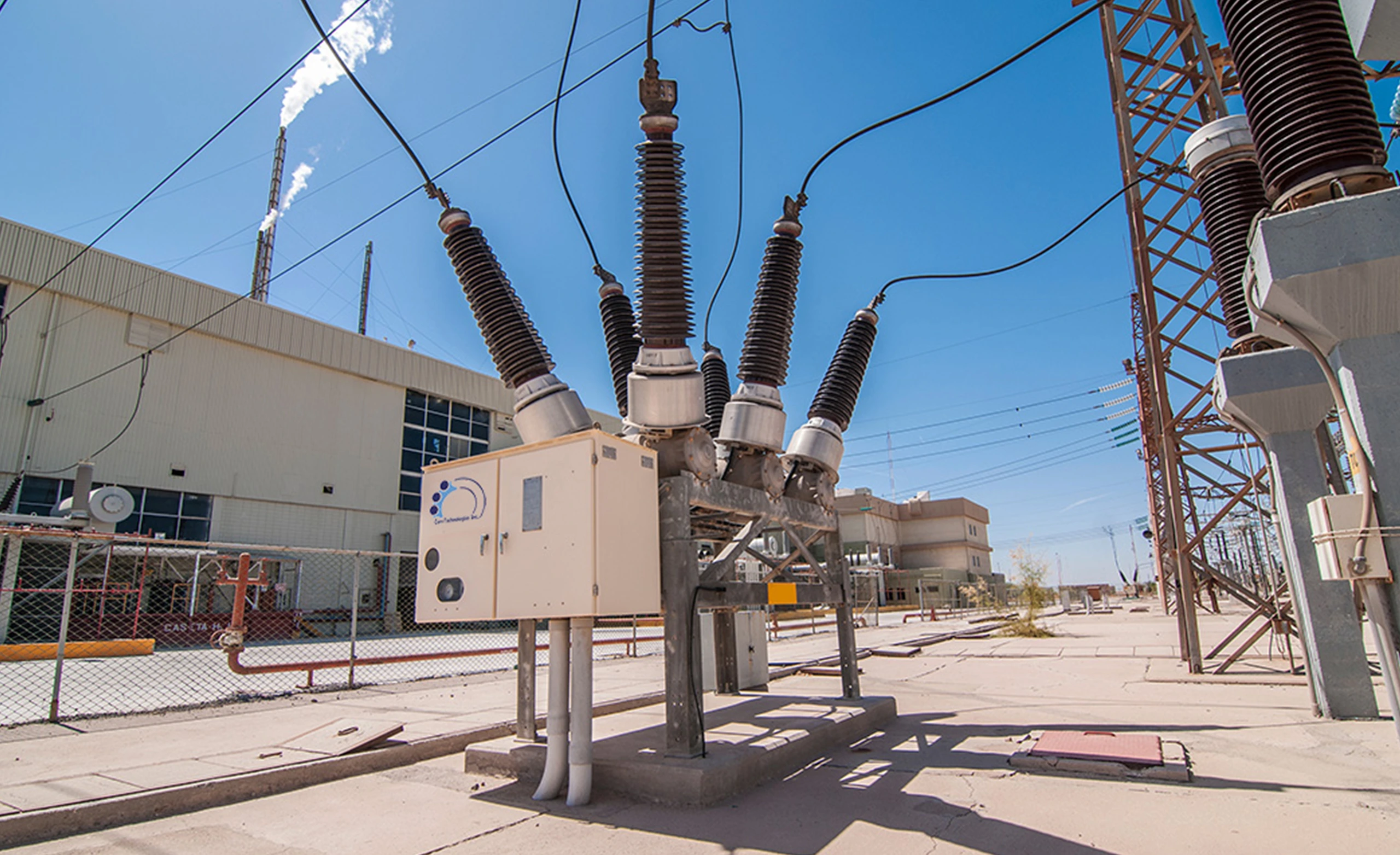

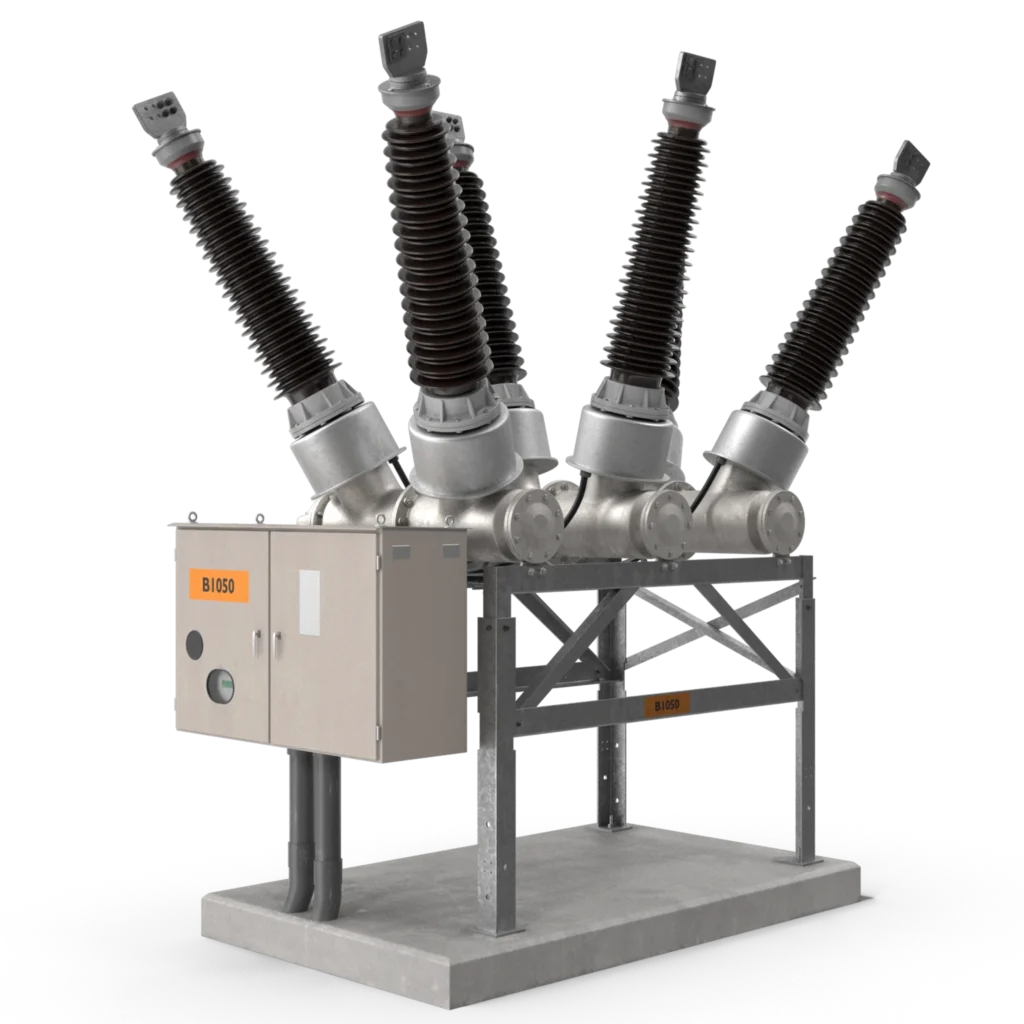

Circuit breaker

ADVANCED & RELIABLE MONITORING SOLUTIONS

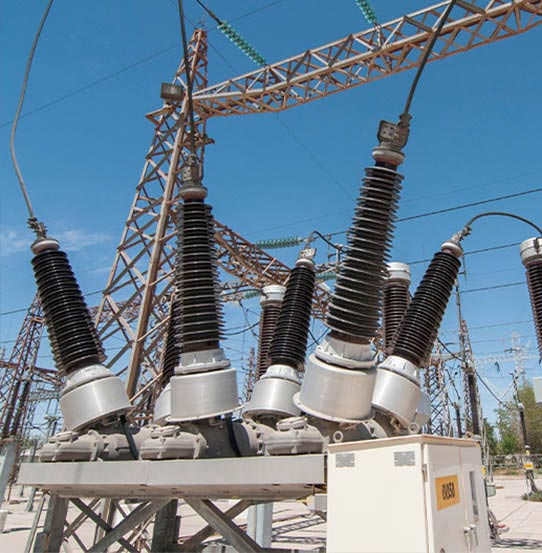

Circuit Breaker Monitoring System

Rugged Monitoring’s Electrical Asset Management System (EAMS) circuit breakers is designed to address the challenges of modern electrical systems, offering a modular and customizable approach to online monitoring.

  • Maximize Efficiency
  • Extend Lifespan

Basic to Enterprise

ENSURE SAFE & RELIABLE BREAKER MONITORING

Circuit breakers are crucial for ensuring electrical safety and reliability across applications, from homes to industrial facilities. They protect electrical systems and equipment from overcurrents and faults, preventing damage and ensuring uninterrupted operations. As electrical systems grow more complex, the need for advanced monitoring solutions for circuit breakers increases. Rugged Monitoring offers a comprehensive range of solutions, from basic monitoring to enterprise-level analytics for predictive maintenance. Our solutions provide deeper insights into circuit breaker condition and performance, using advanced algorithms to detect issues early and enable proactive maintenance. By minimizing downtime and maximizing reliability, our monitoring solutions optimize efficiency and lifespan, ensuring continuous operation and reducing costly repairs.

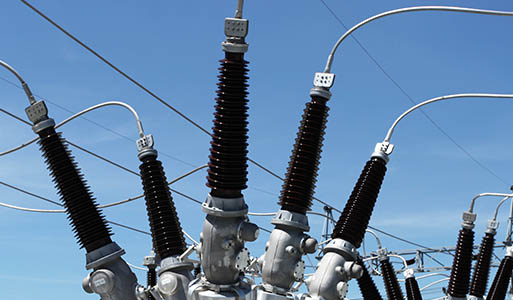

Breaker Condition Monitoring

Breaker condition monitoring is a critical aspect of maintaining the reliability and safety of circuit breakers in electrical systems. By employing a combination of visual inspection, electrical testing, vibration analysis, thermal imaging, and online monitoring, potential issues can be identified early, minimizing downtime and enhancing operational efficiency. Investing in breaker condition monitoring not only reduces maintenance costs but also improves the overall reliability and safety of electrical systems.

  • Maximize uptime
  • Extend breaker lifespan

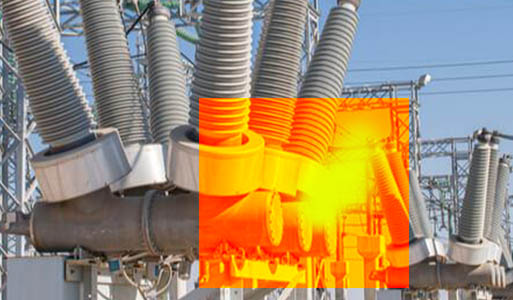

SF6 Leakge Monitoring

Monitoring SF6 leakage in circuit breakers is crucial for ensuring the safe and efficient operation of electrical grids. Remote monitoring systems can be employed to continuously monitor SF6 leakage in circuit breakers from a centralized location. These systems often utilize sensors and communication technologies to transmit real-time data to a monitoring station, allowing for proactive maintenance and intervention when necessary.

  • Minimize environmental impact
  • Enhanced safety

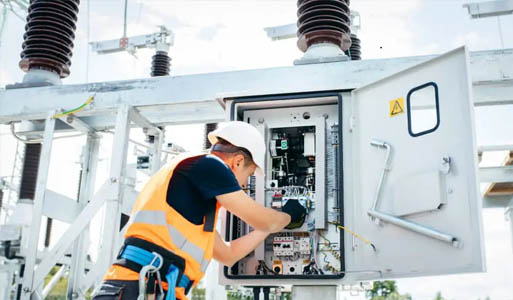

Control Cubicle Monitoring (Trip/Close Coil)

Monitoring the trip/close coils and control cubicle parameters, operators can ensure the reliable and safe operation of circuit breakers, preventing unexpected failures and minimizing downtime in electrical systems. Alarm systems can be integrated with control cubicle monitoring systems to alert operators or maintenance personnel in the event of abnormal conditions or failures.

  • Faster troubleshooting
  • Improved operational efficiency

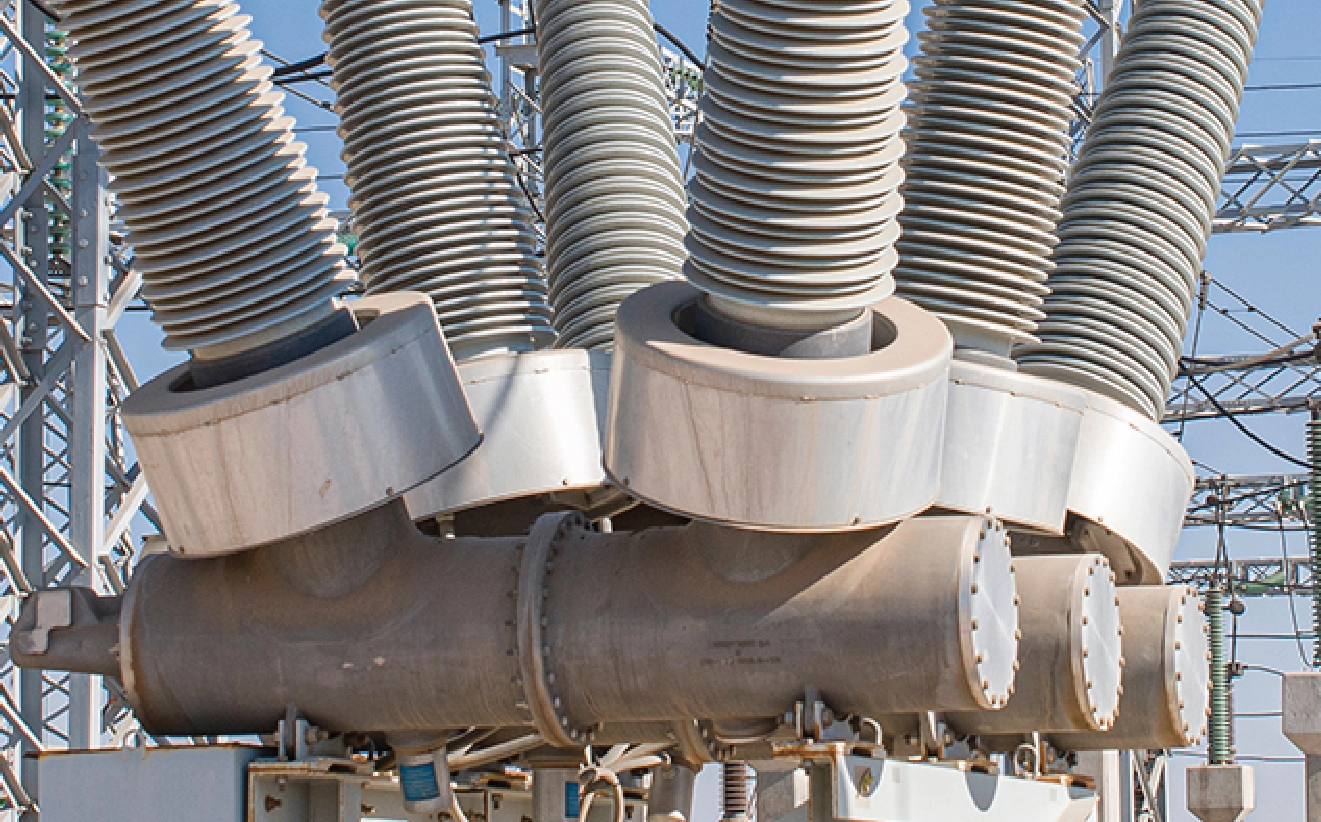

Partial Discharge Monitoring

Partial discharge (PD) monitoring in circuit breakers is crucial for identifying insulation degradation and potential faults before they lead to catastrophic failures. Specialized PD sensors are installed in the circuit breaker to detect partial discharges. These sensors can be capacitive, inductive, or acoustic in nature and are designed to pick up the electromagnetic or acoustic signals generated by partial discharges within the insulation.

  • Prevent catastrophic failures
  • Optimize maintenance strategies

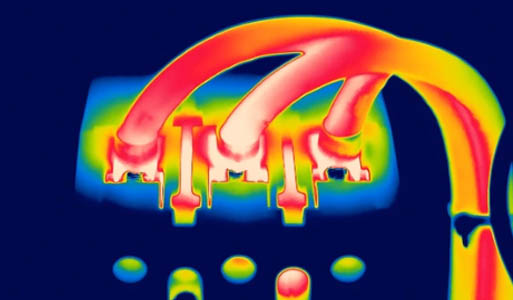

Temperature Monitoring

Implementing comprehensive temperature monitoring in circuit breakers, operators can detect overheating and potential faults early, mitigate risks, and ensure the safe and reliable operation of electrical systems. Monitoring the temperature of insulation materials within the circuit breaker is crucial for detecting insulation degradation and potential failures.

  • Prevent Overheating
  • Extend breaker lifespan

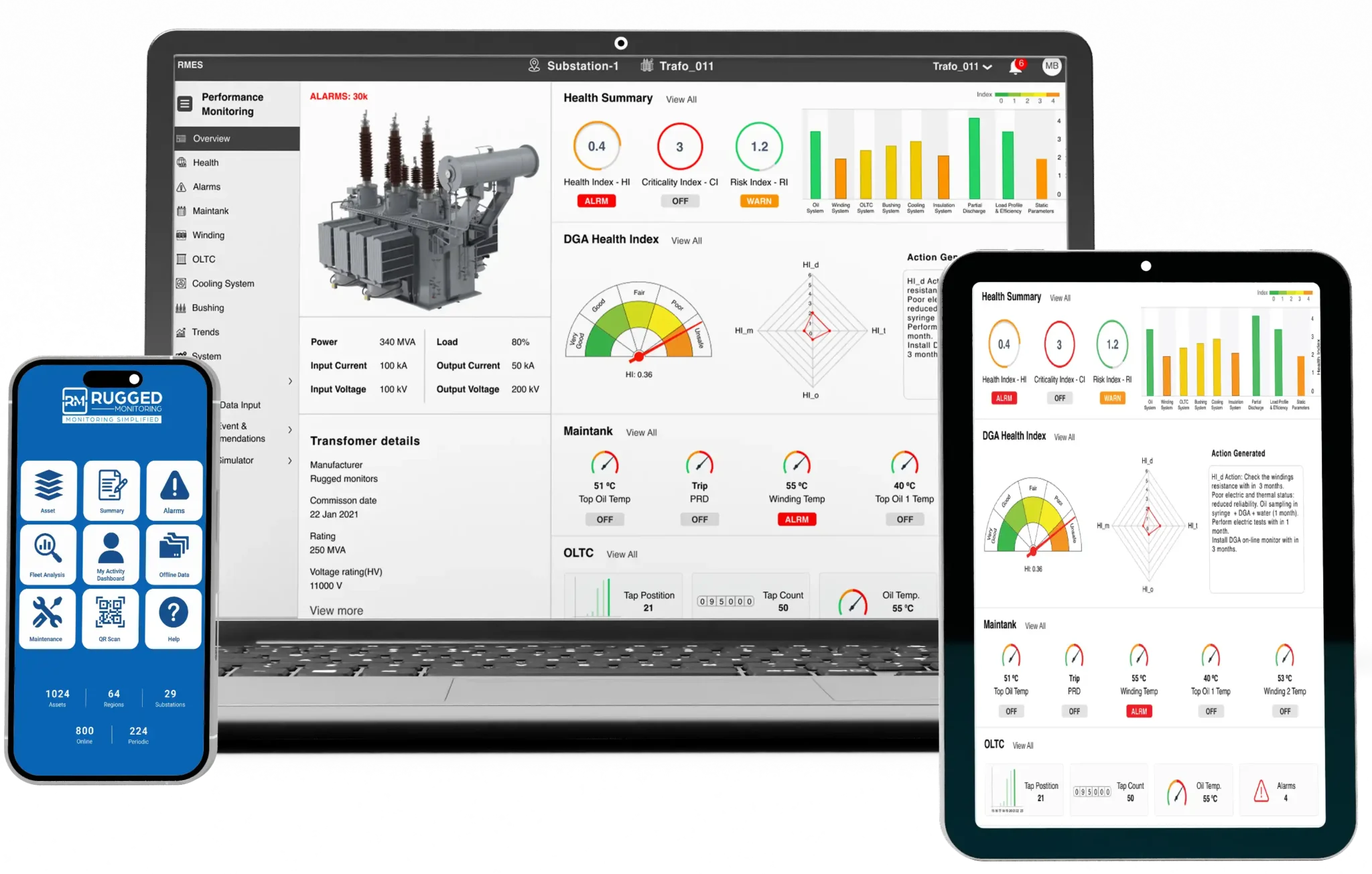

World’s First AI-Driven APM

RM EYE

Optimizing Energy Efficiency & Facilitating Decarbonization

EDGE DEVICES

PEAK BREAKER PERFORMANCE WITH SMART EDGE-DEVICES

Rugged Monitoring offers a diverse range of circuit breaker monitoring solutions, each meticulously crafted to meet your specific application needs. Circuit breakers are vital components across various industries, supporting operations from manufacturing to power generation. Monitoring these devices involves tracking parameters such as temperature, vibration, current, and more, providing valuable insights into the health and performance of the equipment. By understanding your monitoring objectives and the critical parameters relevant to your application, you can confidently select the most suitable circuit breaker monitoring solution from our range of options. Whether you require basic monitoring or comprehensive multi-parameter monitoring, Rugged Monitoring has a tailored solution to meet your needs.

IoT SENSORS

PRECISION MONITORING WITH INTELLIGENT IoT SENSORS

Rugged Monitoring provides an extensive range of IoT sensors tailored for monitoring the condition of electrical equipment. With patented designs and in-house manufacturing, our IoT sensors consistently meet the highest standards of quality and accuracy.

These sensors and accompanying accessories efficiently convert measured properties into signals compatible with transducers or intelligent devices, such as Rugged Monitoring Edge Devices. Engineered to be highly sensitive and precise, our sensors are crafted to fulfill the specific requirements of our customers’ applications.

Exceeding industry benchmarks for quality and performance, Rugged Monitoring sensors and accessories are characterized by their ease of installation, ensuring seamless integration into existing systems.

FAQ

Circuit Breaker Solutions FAQ: Essential Insights for Optimized Breaker Performance

Continuous monitoring of circuit breakers allows for early detection of operating deficiencies and potential failures. Real-time monitoring helps optimize performance, enhance safety, and prevent unexpected interruptions in electrical systems.
Our monitoring solution utilizes advanced sensors and analytics to monitor contact wear, insulation condition, and mechanical parameters of circuit breakers. By detecting early signs of deterioration, operators can implement preventive maintenance and optimize breaker performance.
Yes, our circuit breaker monitoring system is designed to be versatile and adaptable to various types of circuit breakers, including dead tank and live tank configurations. This flexibility ensures compatibility and seamless integration with different systems.

OVERVIEW

Enhancing Circuit Breaker Reliability: Advanced Monitoring with Rugged Solutions

Circuit breakers play a critical role in electrical systems by providing overcurrent protection and interrupting electrical circuits during faults. Effective monitoring of circuit breaker health is essential to ensure reliability, prevent failures, and optimize performance. Rugged Monitoring offers advanced circuit breaker monitoring solutions designed to provide actionable insights and enhance operational efficiency. Our products include contact wear monitoring systems, insulation condition monitors and mechanical condition sensors for breaker health.
