T501

Comprehensive Condition Monitor

One Platform for Multi-Channel Precision Monitoring

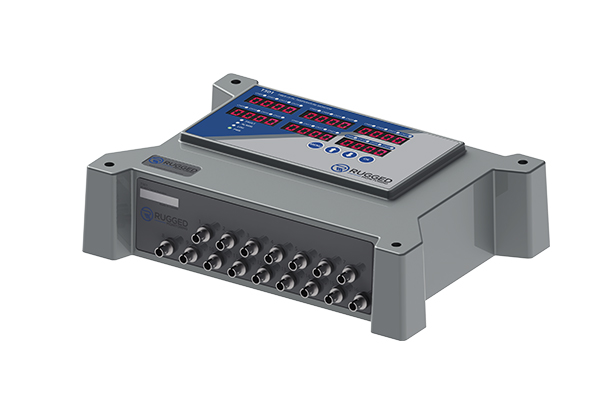

The T501 Rugged Monitor is a multi-channel system for fiber optic temperature sensing, partial discharge detection, bushing health assessment, and power monitoring. Real-time data acquisition and seamless integration ensure reliable performance across diverse electrical assets in demanding environments.

Features

Advanced Monitoring
Smart Diagnostics
Intuitive Interface
Reliable Communication
Secure Operation
Rugged Design

Benefits

Reliable performance with predictive fault detection.
Remote access for real-time data monitoring.
Extended asset lifespan through optimized monitoring.
Cost-efficient with high return on investment.
Seamless upgrades without downtime.

Applications

Transformer Monitoring (Oil Filled / Dry type)
Switchgear Monitoring (GIS / AIS / MV Panel)
Motors/Generators Monitoring (DOL / VFD)
Cable Monitoring (EHV / HV / MV)

Technical specifications

Power Supply

Input Power Requirement

24/48 VDC ± 10%

Power Consumption

20 Watts

EMC Type Testing

Conducted & Radiated Emissions

ICES-003 (2016), CISPR32 (2015), CISPR11 (2015)

ESD and EM Field Immunity

IEC61000-4-2, C37.90-3, IEC61000-4-3, C37.90.2

Fast Transient & Surge Immunity

IEC61000-4-4, IEC61000-4-5, C37.90.2

Magnetic Field Immunity

IEC61000-4-8, IEC61000-4-10

Immunity from Conducted Disturbances

IEC61000-4-6, IEC61000-4-16

Ripple, Dips & Damped Oscillatory

IEC61000-4-17, IEC61000-4-18, IEC61000-4-29

Safety

IEC60255-26 and CE Certified

Analog Output Module

# of Output Channels

04 Channels

Output format

4-20 mA or 0-5Vdc / 0-10Vdc
(Configurable for any measured / calculated value)

Communication

Serial Communication

01 x RS-485 (RS-232 optional converter)

Ethernet Communication

02 Ethernet Ports, configurable to RJ-45 or SFP (Gigabit Optical)

Redundancy

Support PRP Redundancy

Protocol Supported

Modbus, DNP3.0, IEC60870-104, IEC61850, Other protocols provided on reques

Data Storage & Configuration

Data Storage Capacity

4 or 8 GB, Industrial Grade micro-SD, extendable to 2TB

Logging Rate

User Configurable, 1 sec interval on USB

System Fault Indication

1 System Fault Relay, with Local LED light

Config port

USB (to use with Rugged connect windows software)

Environmental & Mechanical

Operating Temperature

-40°C to 72°C

Operating Humidity

95% Non Condensing

Storage Temperature

-40°C to 85°C

Dimensions

W26.7 cm x H7.2 cm x D18.7 cm (10.5’’ x 2.8” x 7.4”)

Weight

App. 1.5 to 2.0 Kg. (based on number of configuration)

Output Relay Module

# of Output Channels

08 Form C relays (5A)

User Programmable

Yes, from Rugged Connect Software or webserver, if present

Analog/Digital Input Module

# of Input Channels

08/04 Channels

Input Channel Types

Configurable from a range of input options, RTD, AC/DC current,
Potentiometer, Dry contact switch

Accuracy of Channels

±0.5% full scale input range

Input Channel Sample Rate

1 Hz

Fiber Optic Modules

Number of Channels

2 to 24 channels

Measurement Range

-80 °C to +300 °C (cryogenic 4 °K range optional)

Resolution

0.1 °C

Accuracy

±1.0 °C (±0.2 °C in relative temperature)

Scan Rate

200 ms / channel ( Optional: Faster scanning rates available)

Ordering Code

Product Drawaing
