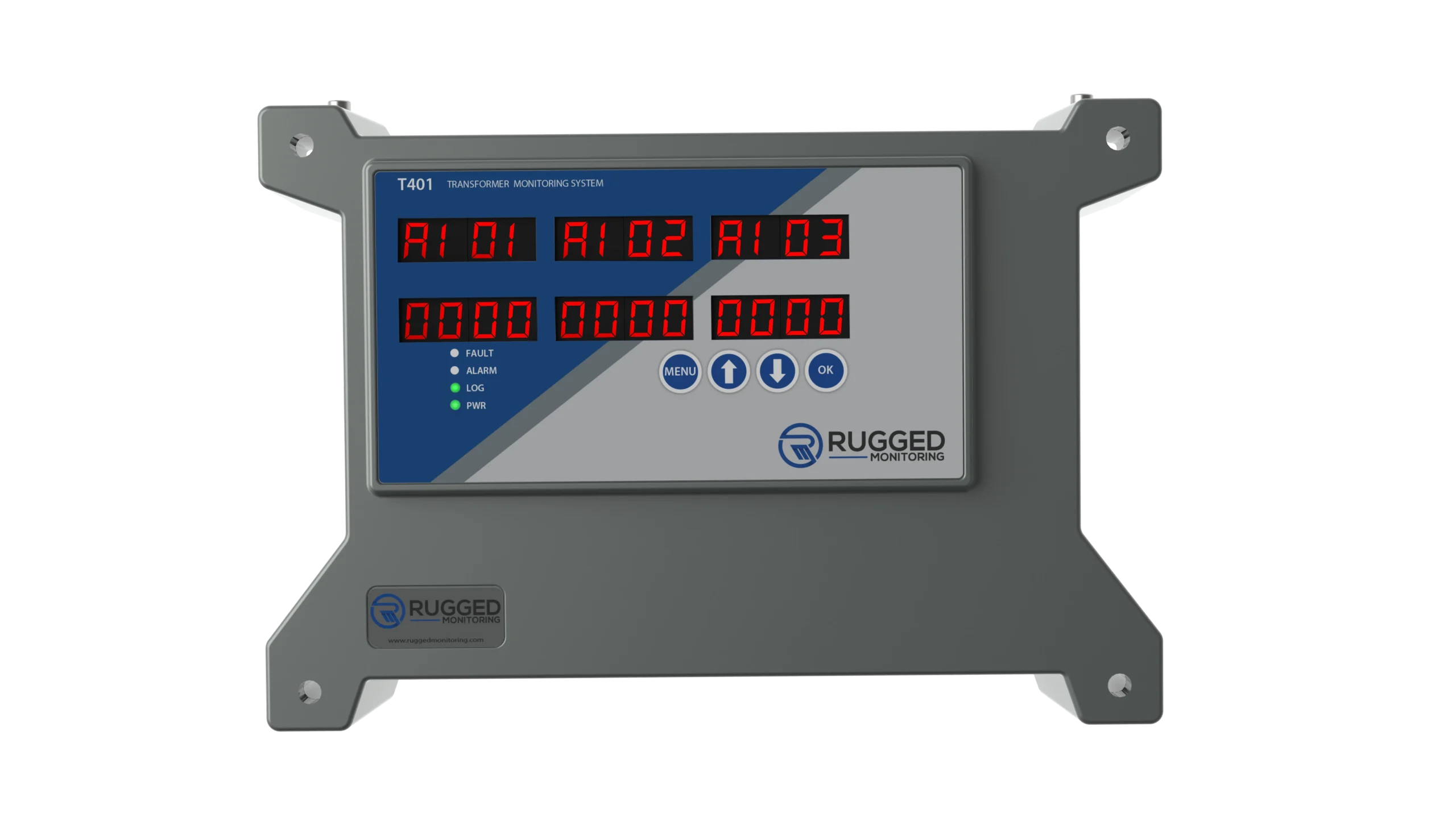

Smart Multi-Asset Monitor

T401

Comprehensive Condition Monitor

Real-Time Monitoring with Advanced Control Capabilities

The T401 Rugged Monitor is a multi-channel industrial condition monitoring system designed for scalable deployment and seamless integration with third-party systems. It offers real-time data acquisition, predictive diagnostics, and reliable performance in harsh environments.

Features

Expandable Channel Options
Programmable Relays
Zero Field Calibration
Plug-and-Play Connectivity
Compact and Durable Build
Superior EMI & ESD Immunity

Benefits

Minimizes downtime with early fault detection.
Prevents catastrophic failures.
Extends asset lifespan.
Reduces maintenance costs.
Ensures reliable performance.
Seamlessly integrates with systems.

Applications

Transformer Monitoring (Oil Filled / Dry type)
Motors/Generators Monitoring (DOL / VFD)
Cable Monitoring (EHV / HV / MV)
Switchgear Monitoring (GIS / AIS / MV Panel)

Technical specifications

Power Supply

Input Power Requirement

24/48 VDC ± 10%

Power Consumption

20 Watts

EMC Type Testing

Conducted & Radiated Emissions

ICES-003 (2016), CISPR32 (2015), CISPR11 (2015)

ESD and EM Field Immunity

IEC61000-4-2, C37.90-3, IEC61000-4-3, C37.90.2

Fast Transient & Surge Immunity

IEC61000-4-4, IEC61000-4-5, C37.90.2

Magnetic Field Immunity

IEC61000-4-8, IEC61000-4-10

Immunity from Conducted Disturbances

IEC61000-4-6, IEC61000-4-16

Ripple, Dips & Damped Oscillatory

IEC61000-4-17, IEC61000-4-18, IEC61000-4-29

Safety

IEC60255-26 and CE Certified

Analog Output Module

# of Output Channels

04 Channels

Output format

4-20 mA or 0-5Vdc / 0-10Vdc
(Configurable for any measured / calculated value)

Output Relay Module

# of Output Channels

08 Form C relays (5A)

User Programmable

Yes, from Rugged Connect Software or webserver, if present

Data Storage & Configuration

Data Storage Capacity

4 or 8 GB, Industrial Grade micro-SD, extendable to 2TB

Logging Rate

User Configurable, 1 sec interval on USB

System Fault Indication

1 System Fault Relay, with Local LED light

Config port

USB (to use with Rugged connect windows software)

Environmental & Mechanical

Operating Temperature

-40°C to 72°C

Operating Humidity

95% Non Condensing

Storage Temperature

-40°C to 85°C

Dimensions

W26.7 cm x H7.2 cm x D18.7 cm (10.5’’ x 2.8” x 7.4”)

Weight

App. 1.5 to 2.0 Kg. (based on number of configuration)

Communication

Serial Communication

01 x RS-485 (RS-232 optional converter)

Ethernet Communication

02 Ethernet Ports, configurable to RJ-45 or SFP (Gigabit Optical)

Redundancy

Support PRP Redundancy

Protocol Supported

Modbus, DNP3.0, IEC60870-104, IEC61850, Other protocols provided on request

Analog/Digital Input Module

# of Input Channels

08/04 Channels

Input Channel Types

Configurable from a range of input options, RTD, AC/DC current,
AC/DC voltage, Potentiometer, Dry/Powered contact switch

Accuracy of Channels

±0.5% full scale input range

Input Channel Sample Rate

1 Hz

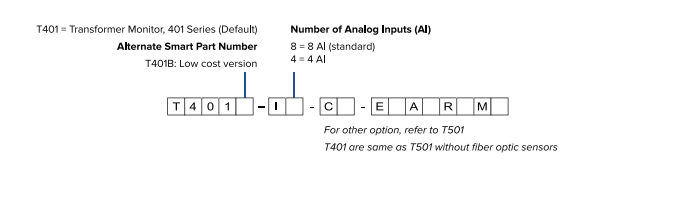

Ordering Code
