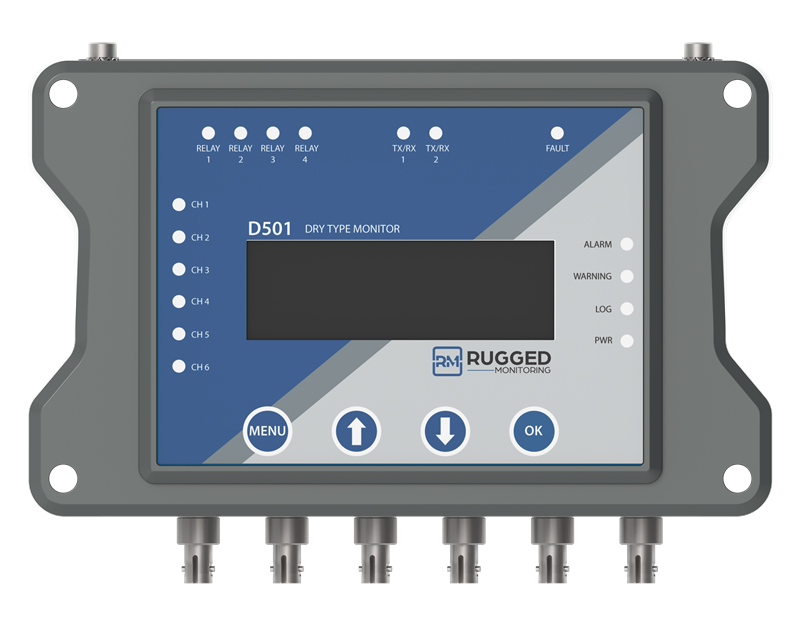

D501FL

Fiber Optic Monitoring Solution

Durable and Adaptable Multi-Channel Monitoring Solution

D501FL is a cutting-edge monitoring solution designed for precise management of electrical assets. Supporting 1 to 6 Fluorescence FO sensors, it delivers accurate, real-time data, ensuring reliable condition monitoring for critical applications.

Features
  • Simple, User-friendly visualization and easy-to-configure
  • Versatile Communication and Protocol support
  • Equipped with the most accurate and advanced health assessment analytics
  • Highly secure visualization and configuration
Benefits
  • Enhanced asset reliability
  • Precision predictive analysis
  • Remote Data Accessibility
  • Increased asset lifetime
  • Highest return on investment
  • Field upgradable with no device downtime
Applications
  • Transformer
  • Switchgear
  • Cable
  • Motors/ Generators
Technical specifications

Power Input

Input Power Requirement

24/48 VDC ± 10%

Power Consumption

5 Watts

Analog Input

# of Channels

3 inputs

Input channel sample rate

1Hz

Input Channel Type

RTD/ 4-20 mA / Type K

Analog Output

# of Input Channels

4 channels

Output format

4-20 mA or 0-5Vdc / 0-10Vdc
(Configurable for any measured/calculated value)

Output Relay
# of Output Channels

4 Form C relays (5A

User programmable

Yes, from Rugged Connect Software

Communication
Serial Communication

2 x RS-485

Protocol Supported

Modbus, DNP3.0, IEC 60870-5-101,
Other protocols provided on request

Data Storage & Configuration

Data storage type

micro SD

Logging Rate

User Configurable, 1 sec interval on micro SD

System Fault Indication

1 System Fault Relay, with Local LED light

Config port

USB (to use with Rugged Connect Windows software)

EMC Type Testing
Conducted & Radiated Emissions

ICES-003 (2016), CISPR32 (2015), CISPR11 (2015)

ESD and EM Field Immunity

IEC61000-4-2, C37.90-3, IEC61000-4-3, C37.90.2

Fast Transient & Surge Immunity

IEC61000-4-4, IEC61000-4-5, C37.90.2

Magnetic Field Immunity

IEC61000-4-8, IEC61000-4-10

Immunity from Conducted Disturbances

IEC61000-4-6, IEC61000-4-16

Ripple, Dips & Damped Oscillatory

IEC61000-4-17, IEC61000-4-18, IEC61000-4-29

Safety

IEC60255-26 and CE Certified

CPU Module
Data Storage Capacity

MicroSD external memory slot (up to 2 TB)

Logging Rate

1 sec interval on USB

Config port

USB (to use with Rugged connect windows software)

Fiber Optic Inputs
Measurement range

-80 °C to +250°C (cryogenic 4 °K range optional)

Resolution

0.1 °C

Accuracy

±1.0 °C (±0.2 °C in relative temperature)

Scan rate

20 ms/channel

Number of channels

1 to 6 channels

Environmental & Mechanical
Operating Temperature

-40°C to 72 °C

Operating Humidity

95% Non-Condensing

Storage Temperature

-40°C to 85 °C

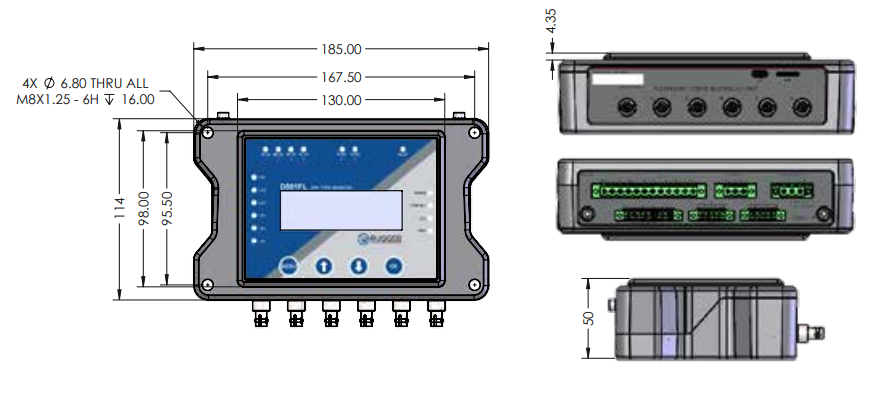

Dimensions

W185 mm x H114 mm x D50mm

Weight

App. 1.0 to 1.5 Kg. (based on number of configuration)

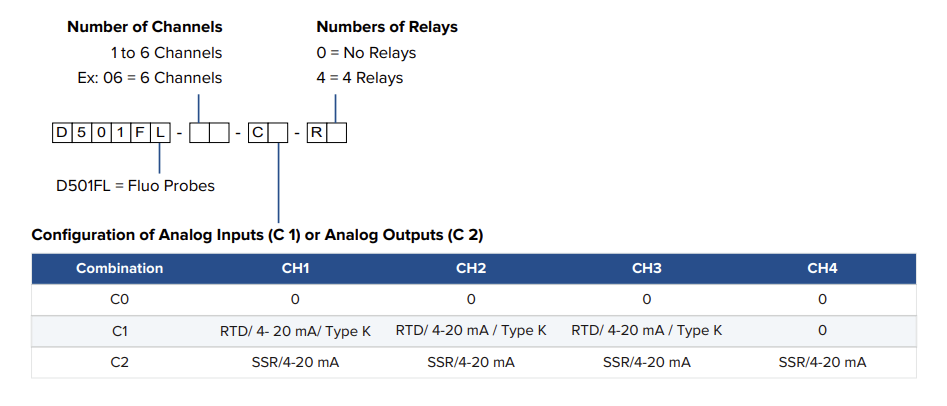

Ordering Code
