Fiber optic temperature sensors are advanced IoT devices that utilize optical fibers, which are thin strands of glass or plastic. They transmit light and detect even the most minor temperature changes. With the fundamental properties of light, such as intensity, polarization, and wavelength, these fiber optic temperature sensors measure external faults with high sensitivity and accuracy.
A key characteristic of fiber optic sensors is their immunity to electromagnetic interference (EMI). This ensures durability and reliability even in extreme conditions.
Fiber optic sensors also offer robust build, intrinsic safety, and capability for distributed sensing over long distances. Thus, making them highly suitable for applications across industries, including utilities, renewable energy, data centers, and EV charging stations.
The working principle of fiber optic temperature sensors is based on the modulation of light properties as it travels through or reflects from an optic fiber. These modulations are correlated with the fluctuations in temperature of the monitored asset.
Rugged Monitoring’s fiber optic sensors are based on the key mechanisms of GaAs-Based Temperature Sensing. Our temperature sensors are designed with Gallium Arsenide (GaAs) crystals as their fiber tip. They measure temperature fluctuations through shifts in their absorption spectrum. As the temperature increases, the transmission properties of GaAs adjust. This ensures highly accurate (+/-0.2 °C) and real-time temperature readings (response time of 0.2s).
Rugged Monitoring’s GaAs fiber optic sensors are easy to install and are based on proven zero-drift GaAs technology. They are designed to surpass transformer lifespan. This makes them highly suitable for utilities, OEMs, and high-voltage environments.
Compared to traditional temperature sensors, Rugged Monitoring’s fiber optic temperature sensors provide resistance to harsh environmental conditions (with PTFE coating). This includes corrosion, radiation, and high temperatures, ensuring asset safety even in high-voltage and extreme environments. Our advanced solutions also enable continuous temperature sensing without signal degradation over long distances and narrow spaces. This is due to their small form factor (1-1.5mm).
Our fiber optic sensors also offers heavy-duty protection, outstanding repeatability, and plug-and-play operations. Thus, meeting a wide range of industry requirements and dynamic working conditions.
Our innovative, patented TSENS fiber optic temperature sensor is designed for durability and ease of installation. This is a standout choice for transformer manufacturers. It delivers reliable, long-term temperature data for operators, which is critical for accurate transformer aging evaluation. Thereby, enabling a proactive maintenance strategy. Based on proven zero-drift GaAs technology, TSENS, ensures precise temperature readings even in high-voltage environments.
The Kevlar-reinforced fiber optic temperature sensor, TSENS-K, offers a durable and easy-to-install design, ensuring long-term temperature monitoring. It provides manufacturers and operators with reliable data critical for accurate transformer aging evaluation, proactive maintenance, and consistent performance. The sensing mechanism is based on proven zero-drift GaAs technology. With Kevlar on the entire length of the probe, it enables highly stable and robust performance.

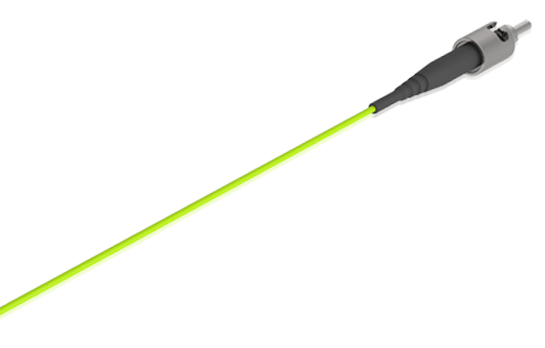

LSENS-T is our multi-use fiber optic temperature sensor for real-time monitoring in a wide range of demanding applications. It ensures immunity to electromagnetic fields, microwave radiation, and explosion-proof resistance. It also enables a quick response time of 0.2 seconds and a standard temperature deviation of ±0.2 °C. LSENS-T provides precise and repeatable measurements suitable for OEM-type applications. This fiber optic sensor uses a GaAs crystal at the sensor tip for real-time measurements.

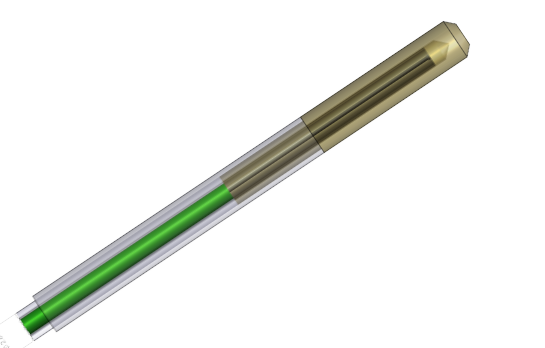

The LSENS-U is our heavy-duty fiber optic temperature sensor. It is designed for precise, durable, and adaptable temperature monitoring measurements even in the most challenging conditions. The sensor offers complete immunity to RFI, EMI, NMR, corrosive, and microwave radiation. Thus, is a dynamic choice for OEM-type applications. With a GaAs crystal at the sensor tip and a diameter of 1.1 mm, LSENS-U offers outstanding repeatability. Thereby improving the accuracy of testing instruments. LSENS-U also has a quick response time of 0.2 seconds and a standard temperature deviation of ±0.2 °C.

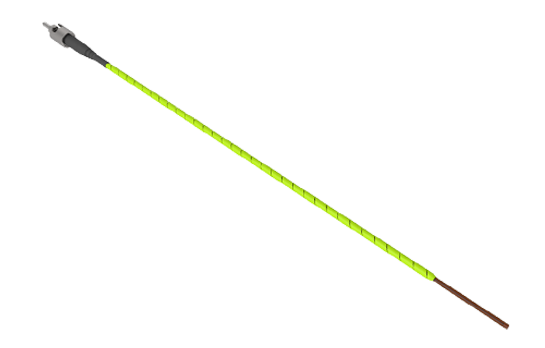

LSENS-R is our multi-use fiber optic temperature sensor designed for a wide range of applications. It offers immunity to RFI, EMI, NMR, and microwave radiation. With a quick response time of 0.2 seconds and a standard deviation of ±0.2°C, this fiber optic sensor provides accurate real-time temperature measurements. The fiber optic probe consists of a PTFE-protected glass fiber and a GaAs-crystal (Gallium Arsenide) at the sensor tip. This ensures outstanding repeatability.
Have questions or need more information? Reach out to us for reliable Rugged Monitoring solutions.
