CPM601-P

CPM601-P
CPM601-P1

CPM601-P

CPM601-P is designed precisely to perform PD measurements in dual frequency ranges; 0.01MHz – 100MHz as well as 200 MHz – 3000 MHz. With the help of advanced electronics embedded inside CPM601.

KEY FEATURES

  • Rugged, compact design
  • Operates in Dual Frequency Ranges; 0.01MHz – 100MHz as well as 200 MHz – 3000 MHz
  • Compatible with Acoustic, Ultrasonic, HFCT, TEV, Coupling Capacitors as wells as UHF Sensors
  • An interactive and comprehensive software PD Connect for reliable PD measurement and analysis
  • Gigabit ethernet copper Cat5e communication link between monitor and laptop
  • Optional rugged laptop with installed software suite

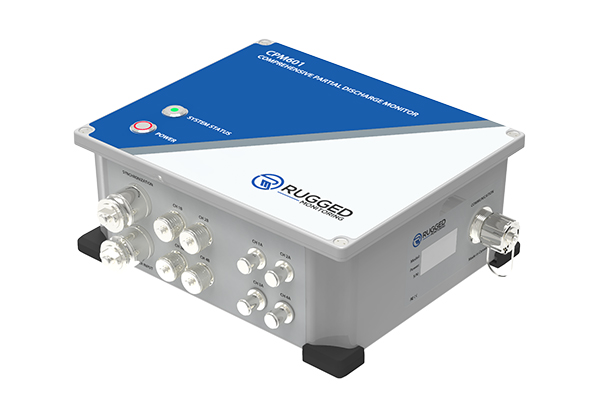

CPM601-P is a portable designed precisely to perform PD measurements in dual frequency ranges; 0.01MHz – 100MHz as well as 200 MHz – 3000 MHz. With the help of advanced electronics embedded inside CPM601, now a user can perform PD measurement using variety of sensors without the need of using external frequency down converters.

The monitor presents All-in-One solution to perform PD measurements using Acoustic, Ultrasonic, HFCT, TEV, Coupling Capacitors as wells as UHF Sensors on all assets, GIS, Power Transformers, Rotating Machines and Power Cables. Compact size and rugged enclosure and electronics make it portable, easy to carry and enabling the user to perform PD measurements with less hassle.

  • Portable periodic partial discharge monitoring
  • Offline PD measurement during HV AC testing (Resonant test set, VLF, OWTS)
  • Multiple-point PD monitoring
  • Cables and their accessories
  • Rotating machines
  • AIS/ GIS Switchgears
  • Power transformers
  • Rugged sensors, monitor and laptop
  • Gigabit ethernet communication between monitor and laptop
  • Enhanced noise rejection and Realtime denoising
  • Software packed with useful tools for reliable and interactive PD measurements
  • Robust recording and analytics
  • Customizable according to customer specific applications
  • Suitable for Online or Offline PD measurements
TECHNICAL SPECIFICATIONS
INPUT CHANNELS
Channels
8 Multiplexed (4x HF and 4x UHF)
Sampling Rate
250 MS/s
Amplification
up to 50 dB, software selectable
Filtering
Software configurable band pass filters
HF CHANNELS
Bandwidth
0.01 to 100 MHZ
Sensitivity
-50dBm
UHF CHANNELS
Bandwidth
200 - 3000 MHz
Sensitivity
-80 dBm
Dynamic Range
70 Db
DATA TRANSFER
High Resolution (pulses data on simultaneous channels)
10,000 pulses per second for 4 simultaneous channels
Low Resolution (pulse amplitude on simultaneous channels)
50,000 pulses per second for 4 simultaneous channels
Transfer Rate
400 Mbps (depending on operating system and connection)
MEMORY
SSD
up to 1 TB (Optional)
COMMUNICATION LINK
Type
Ethernet Copper or Fiber (100/1000 BASET)
Connector
RJ45 or LC Multi-mode
SYNCHRONISATION INPUTS
2 Inputs, software
Internal
External
selectable
IP RATING
IP 65
TEMPERATURE RATING
Ambient
-30°C - 60°C
Storage
-40°C - 85°
POWER RATING
Input Power
240-100Vac, 45W

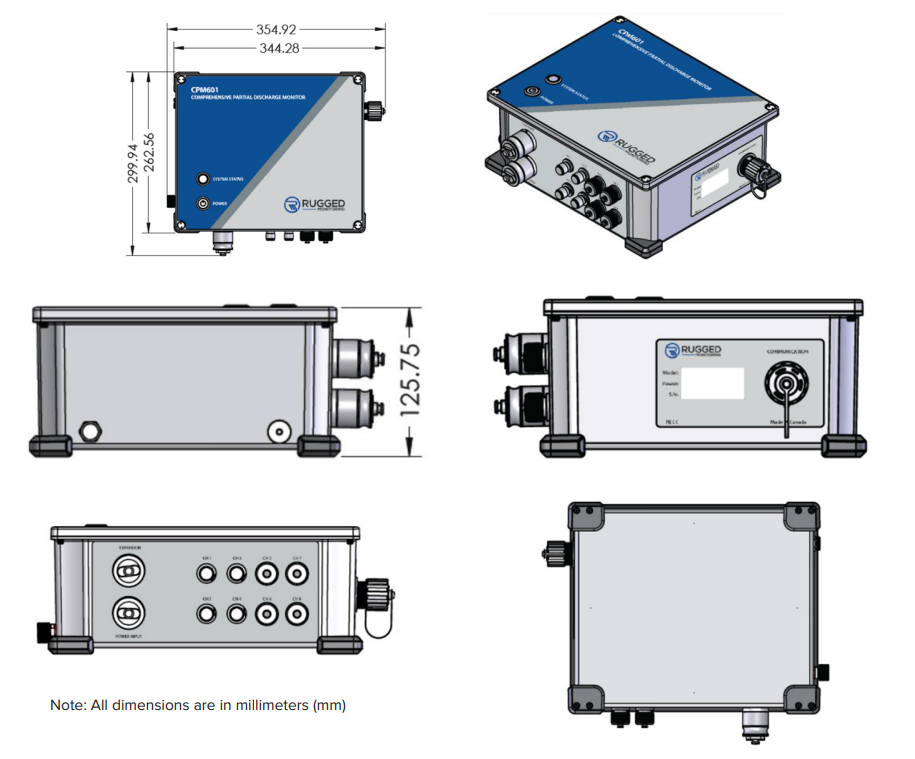

DIMENSIONS
260mm(L)x310mm(W)x120mm(H)

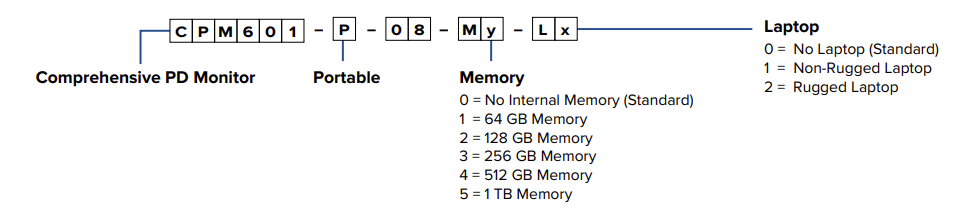

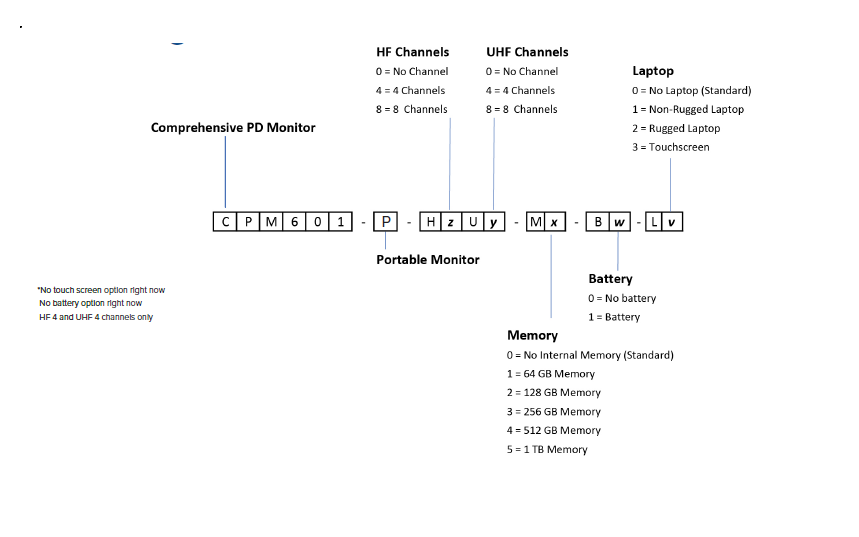

LAPTOP
Rugged Laptop
(Optional)
