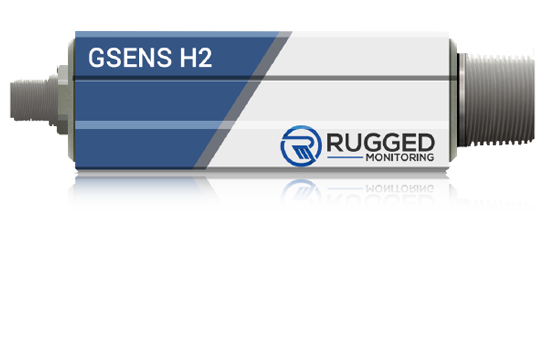

GSENS H2

Hydrogen Sensor for Transformer

Hydrogen Detection Made Smarter with Advanced DGA Platform

GSENS H2 (also known as H2SENS) is a cutting-edge hydrogen sensor for Transformers which is immune to interference and designed to deliver unparalleled performance and reliability in monitoring hydrogen levels within power transformers and ancillary equipment.

Features

Advanced Hydrogen Detection
Oil-Immersed Operation
Wide-Application Compatibility
Fail-Safe System
No Signal Saturation
Noise Immunity

Benefits

Cost-Effective Monitoring
Ease of Retrofitting
Versatile Operation
Continuous Real-Time Hydrogen Monitoring
Reduced Dependence on Oil Sampling
Maintenance-Free Design
Highest Level of Accuracy
Rugged and Compact Design

Applications

Transformer and Other Oil Filled Assets

Technical specifications

Measurement Accuracy Range

Oil Phase: 25 – 5,000 ppm

Gas Phase: 500 – 100,000 ppm

Accuracy

Oil Phase: 20% of reading or 25 ppm

Gas Phase: 20% of reading or 500 ppm

Repeatability

Oil Phase: 10% of reading or 15 ppm

Gas Phase: 10% of reading or 300 ppm

Response Time

Oil Phase: < 60 minutes

Gas Phase: < 60 minutes

Operating Temperature (Ambient)

Oil Phase: 40°C to +70°C

Gas Phase: 40°C to +70°C

Storage Temperature

Oil Phase: -40°C to +85°C

Gas Phase: -40°C to +85°C

Oil Temperature Range

Oil Phase: -40°C to +105°C

Gas Phase: n/a

Data Log Storage

Oil Phase: 1 Year

Gas Phase: 1 Year

Cross-sensitivity to H2O, CO2, C2 H2, C2 H4, CO, etc.

Oil Phase: <1%

Gas Phase: <1%

Serial Communications

Oil Phase: RS485, MODBUS RTU

Gas Phase: RS485, MODBUS RTU

Power Supply

Oil Phase: 9-48 VDC, 10 Watt

Gas Phase: 9-48 VDC, 10 Watt

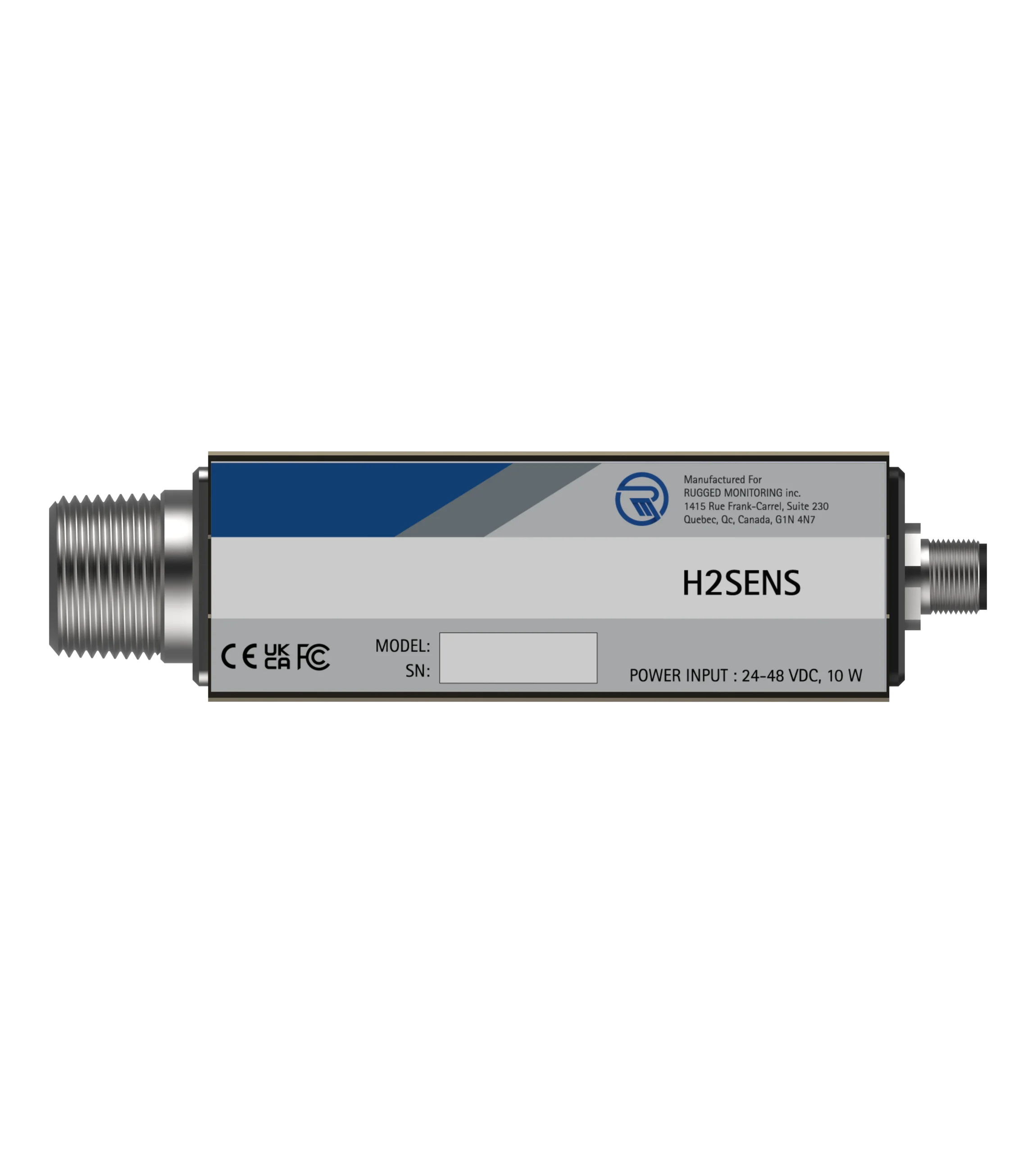

Product Drawing
