HF & UlHF PD Monitoring Module- Continuous
Durable and Reliable Partial Discharge Monitoring for Critical Assets
The PD201 New Gen is our advanced Partial Discharge (PD) monitoring edge device designed for accurate and reliable performance across a wide range of critical electrical assets. Combining the capabilities of high-frequency (HF) and Ultra-High-Frequency (UHF) technologies, it ensures precise PD detection and analysis, supporting 4 or 8 configurable channels for seamless integration with various PD sensors operating across an extensive frequency range.
High-Frequency (HF): 4 or 8 Channels
Ultra-High-Frequency (UHF): 4 or 8 Channels
HF: 125 MS/s per channel
UHF: 360 points per cycle
HF: 1kHz – 50MHz
UHF: 300MHz – 2000MHz
HF: 14-Bit
UHF: 16-Bit
UHF: 300 MHz-1100 MHz 1000 MHz-2000 MHz
UHF: 300 MHz-1400 MHz, 2-notch filters
HF: 128GB
UHF: 128GB
HF: Any High Frequency (HF) PD Sensors (Bushing Adaptors, HFCT, TEV, Capacitive Couplers, Acoustic, Ultrasonic, etc.)
UHF: Any Ultra High Frequency (UHF) PD Sensor with a sensitivity of 300MHz – 2000MHz
1Voltage Channel, 16 Bit (0- 100VPeak), 1Ms/s, Dc – 1kHz
RS-485 with Modbus RTU
Ethernet Port for configuration and protocols(RJ45)
-30 °C to 70 °C
95% non-condensing
-40 °C to 85 °C

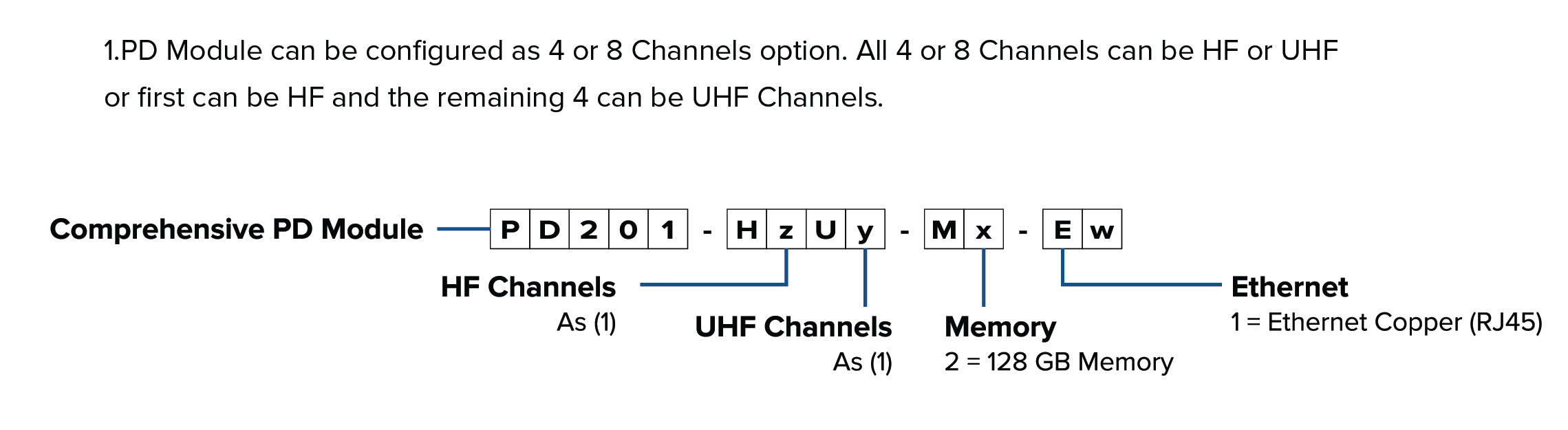

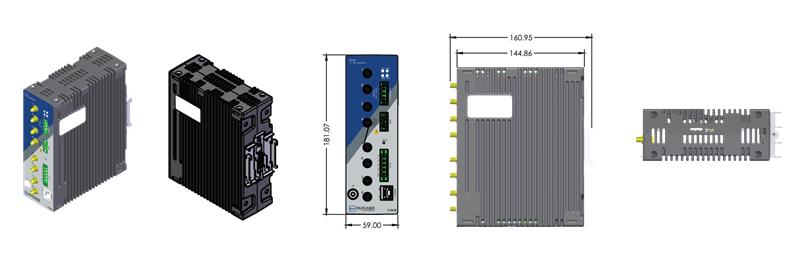

180.07 mm x 161.95 mm x 59.0 mm
24V
30W
PD Live Webserver, PD Connect
IEC61850, Modbus RTU, DNP3, MQTT
