TSENS Fiber Optic Temperature Sensor

TSENS-FL

FIBER OPTIC TEMPERATURE FLUORESCENCE SENSOR

Reliable long-term temperature monitoring even in electrically demanding environments.

TSENS-FL employs fluorescence lifetime measurement technology to ensure reliable assessment of thermal stress, insulation aging, and operational margins. It is inherently immune to electromagnetic interference, making it suitable for transformer windings, high-voltage equipment, and other power electronic systems. Designed for seamless integration with our D501FL edge device and RM EYE APM, TSENS-FL forms a reliable foundation for continuous, real-time hotspot monitoring.

Features

Immune to EMI, PD, and HV fields
Compact 2mm probe for seamless retrofitting
High mechanical strength optical fiber with PTFE sheathing
Suitable for long-term temperature monitoring

Benefits

High stability, repeatability, and accuracy over time
Excellent resistance to chemicals, moisture, and mechanical wear
Eliminates errors caused by EMI or electrical interference
Supports condition-based maintenance and life-extension strategies

Applications

Dry-type transformers
High-voltage equipment
Industrial processing where electrically isolated temperature measurements are required

Technical specifications

Temperature range

– 40 °C to +250 °C

Repeatability

± 0.1 °C

Accuracy temperature

± 1.0 °C or 1%*
*Whichever is greater

Response Time

3.8 seconds

Probe Outer Diameter

2 mm

Tip Diameter

2.7 mm

Sheathing Material

PTFE

Tip Material

Polyamide tube

Maximum Probe Length

40 m

Connector

Stainless alloy ST with metallic ferules

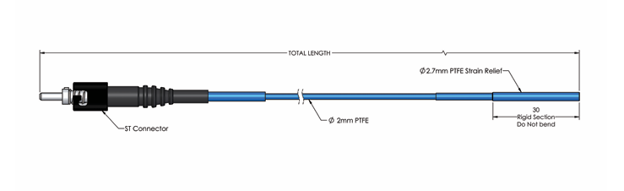

Product Drawing

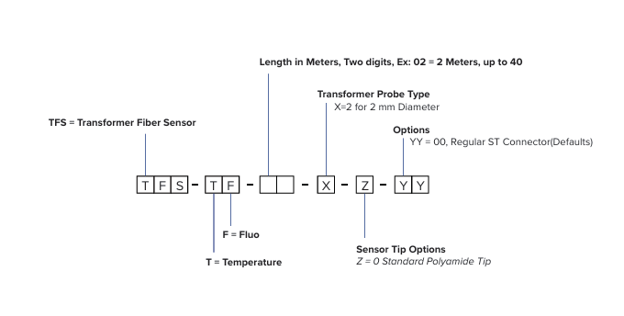

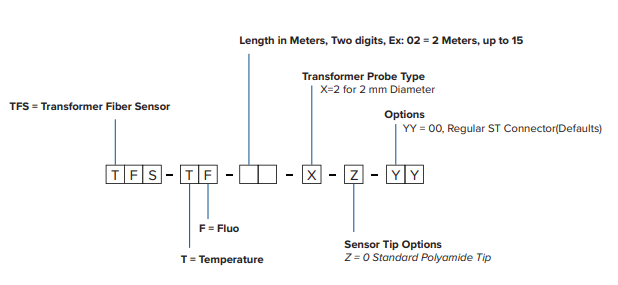

Ordering Code
