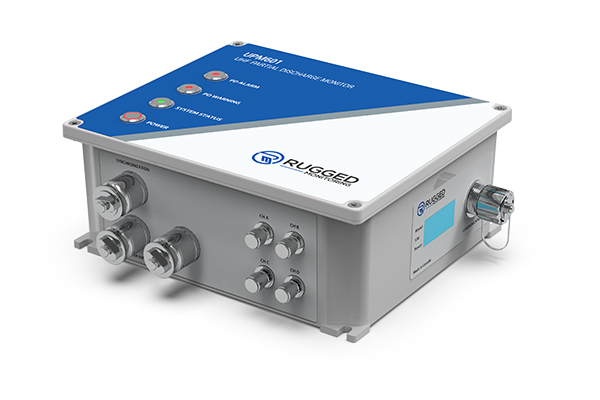

Continuous PD Monitor (UHF)

UPM601-C

UHF PD Edge Devices

Advanced UHF PD Monitoring for Continuous Asset Reliability

UPM601-C is an advanced Partial Discharge monitoring system, enabling 24/7 insulation defect detection in high-voltage assets. It also facilitates offline PD measurements during HV AC testing for comprehensive condition assessment and maintenance planning.

Features

IP65-rated, rugged design for demanding environments.
4 UHF input channels for simultaneous PD monitoring.
Frequency range: 300 MHz to 2000 MHz, with a 250 MS/s sampling rate.
Gigabit Ethernet (100/1000 BASE-T) via RJ45 for reliable data transfer.
High sensitivity (-10 dBm to -70 dBm) for precise PD detection.
Integrated indicator LEDs for PD alarms and warnings.

Benefits

Durable and reliable sensors, monitor, and server.
Gigabit Ethernet for seamless data transfer.
Robust and rigorously tested design.
Advanced software for accurate PD analysis.
Comprehensive data recording and insights.
Customizable for specific applications.
Supports online and offline PD monitoring.

Applications

Continuous online partial discharge (PD) monitoring.
Offline PD measurements during high-voltage (HV) AC testing.
Multi-point PD monitoring for enhanced defect detection.
Monitoring of Power Transformers for insulation health.
PD detection in Gas-Insulated Switchgear (GIS).
Condition assessment of Circuit Breakers.
Monitoring cable terminations for insulation defects.

Technical specifications

Monitor

Channels

4 simultaneous channels

Sampling Rate

250 MS/s

Bandwidth

300 MHz – 2000 MHz

Amplification

up to 50 dB, software selectable

Filtering

Software configurable band pass filters

Others

Remote Communication

IEC61850 (Optional)
Proprietary Rugged Connect for remote communication
Customized third party interface on request

Dimensions

260mm(L)x310mm(W)x120mm(H)

Software

PD Live, Rugged Enterprise/ RMEYE

Memory

SSD

upto 256 GB (Optional)

Temperature Rating

Ambient

-30˚C – 60˚C

Storage

-40˚C – 85˚C

Communication Link

Type

Ethernet Fiber / Copper

Cable

Multimode Fiber / Cat5e

IP Rating

Data Transfer

High Resolution (pulses data on simultaneous channels)

10,000 pulses per second for 4 simultaneous channels

Low Resolution (pulse amplitude on simultaneous channels)

50,000 pulses per second for 4 simultaneous channels

Transfer Rate

400 Mbps (depending on operating system and connection)

Power Rating

Input Power

35W max

Synchronization Inputs

Input 2 Inputs, software

Internal

Selectable

External

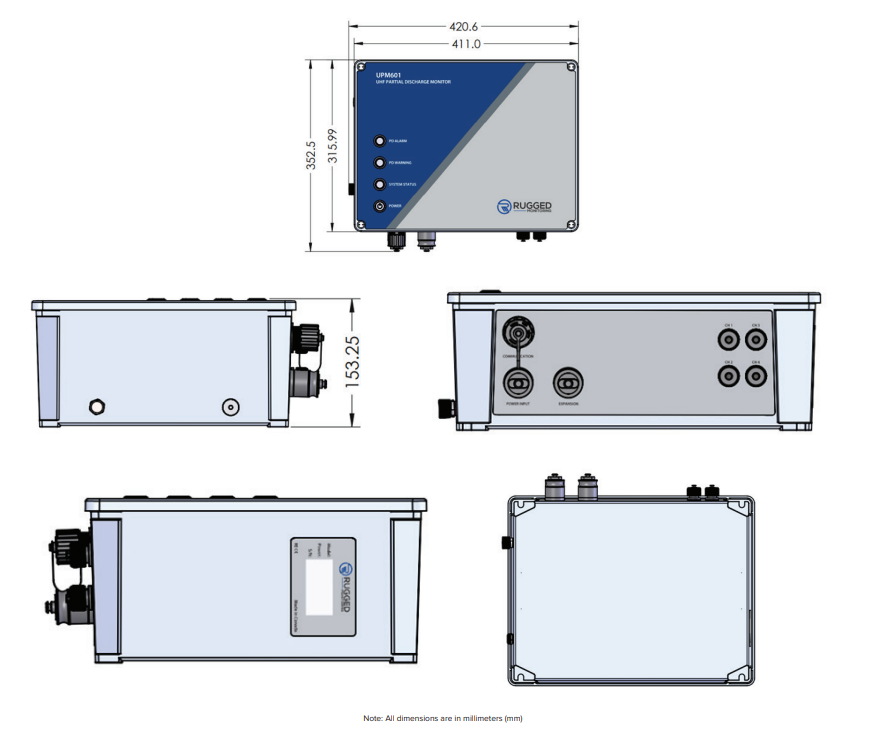

Product Drawing

Ordering Code
