USENS-B

USENS-B

UHF PARTIAL DISCHARGE SENSOR.

KEY FEATURES

  • Rugged Design, Easy installation on the GIS Barrier
  • High Dielectric and Built-in overvoltage protection
  • Highly Sensitivity, and Wide band UHF PD Sensor
  • Shielded to avoid electromagnetic interface
  • IP66 rated, suitable for outdoor substation environment
  • Customized to fit any size of barrier openings

Highly sensitivereliable, UHF technology based Partial Discharge sensors for GIS barrier openings.

USENS-B is an Ultra High Frequency (UHF) antenna that can detect smallest UHF frequencies emitted by the partial discharge (PD) activity. The sensors are customized to fit on different kind of GIS barrier openings.
The sensors can easily be placed on the barrier opening and then fixed with the belt (optional) around the barrier. Their wider frequency response and higher sensitivity ensures higher GIS coverage for PD monitoring.

  • Periodic partial discharge testing and measurements
  • Continuous online partial discharge monitoring
  • High voltage testing after maintenance/ overhaul
  • GIS/ GIL PD Testing and Monitoring
  • GIT (Gas Insulated Transformers) PD Testing & Monitoring
  • Circuit Breaker PD Testing and Monitoring
  • Higher sensitivity (-70dBm) ensure higher ROI of monitoring
  • Wide frequency response, compatible with all PDM systems
  • Easy installable, and High Dielectric strength, Safest Sensors
  • Shielded Sensor, Noise Immunity
  • Built-in overvoltage protection keeps the PDM electronics safer
  • IP65 protection and rugged design, suitable for outdoor installations
  • Leak proof sensors enables safety and 0% SF6 leakage
  • Customized according to Barrier Opening and customer requirements

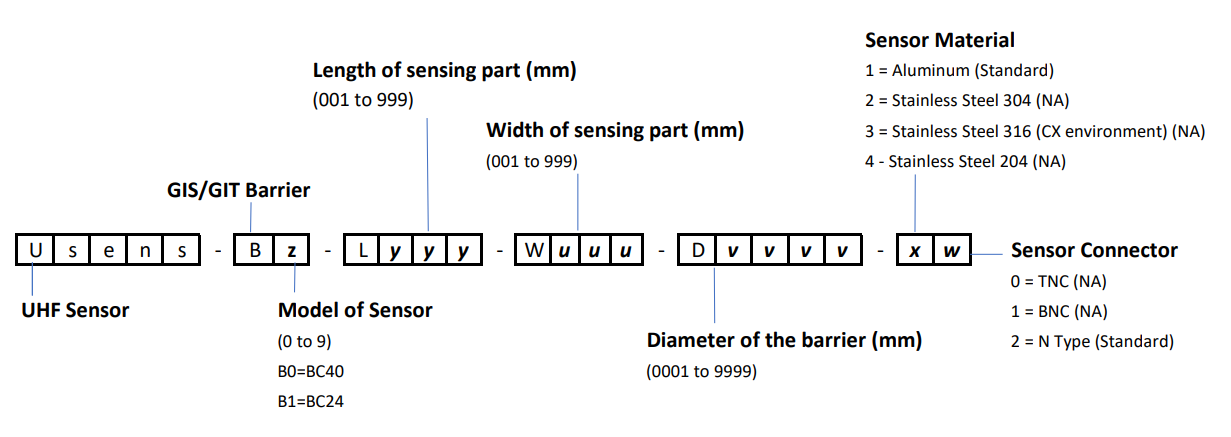

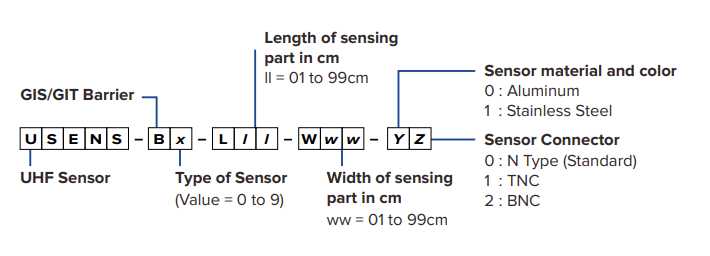

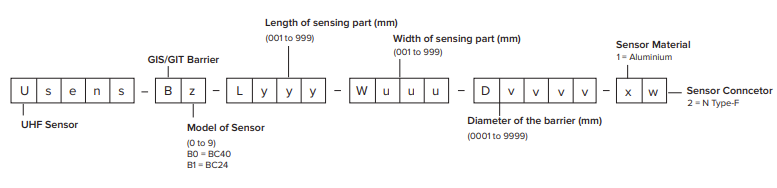

TECHNICAL SPECIFICATIONS
UHF Frequency Response
200 - 3000 MHz
Sensitivity
up to -70 dBm
Average Eective Height over 500MHz – 1500MhHz
12 mm+
Min. Eective Height over 500Mhz – 1500Mhz
06 mm+
Withstand Voltage
up to 1500 kV
Output
N-Type connector; Customized option available
Connector Circuit Impedance
50 Ω
Vibration Testing
Suitable for HV - GIS and Transformer applications
Ingress Protection (IP)
IP-66
Ambient (Operating Temperature)
-60 ⁰C to +100 ⁰C
Storage Temperature
-60 ⁰C to +100 ⁰C
Operating Humidity
95% humidity at 50 ⁰C
Dimensions
Customized as per dierent GIS Barrier Types and Openings
Weight
Customized as per dierent GIS Barrier Types and Openings
Install Position
GIS / GIT / GIL Barrier Openings
Signal Cable
Very low attenuation UHF (Coax) cable
