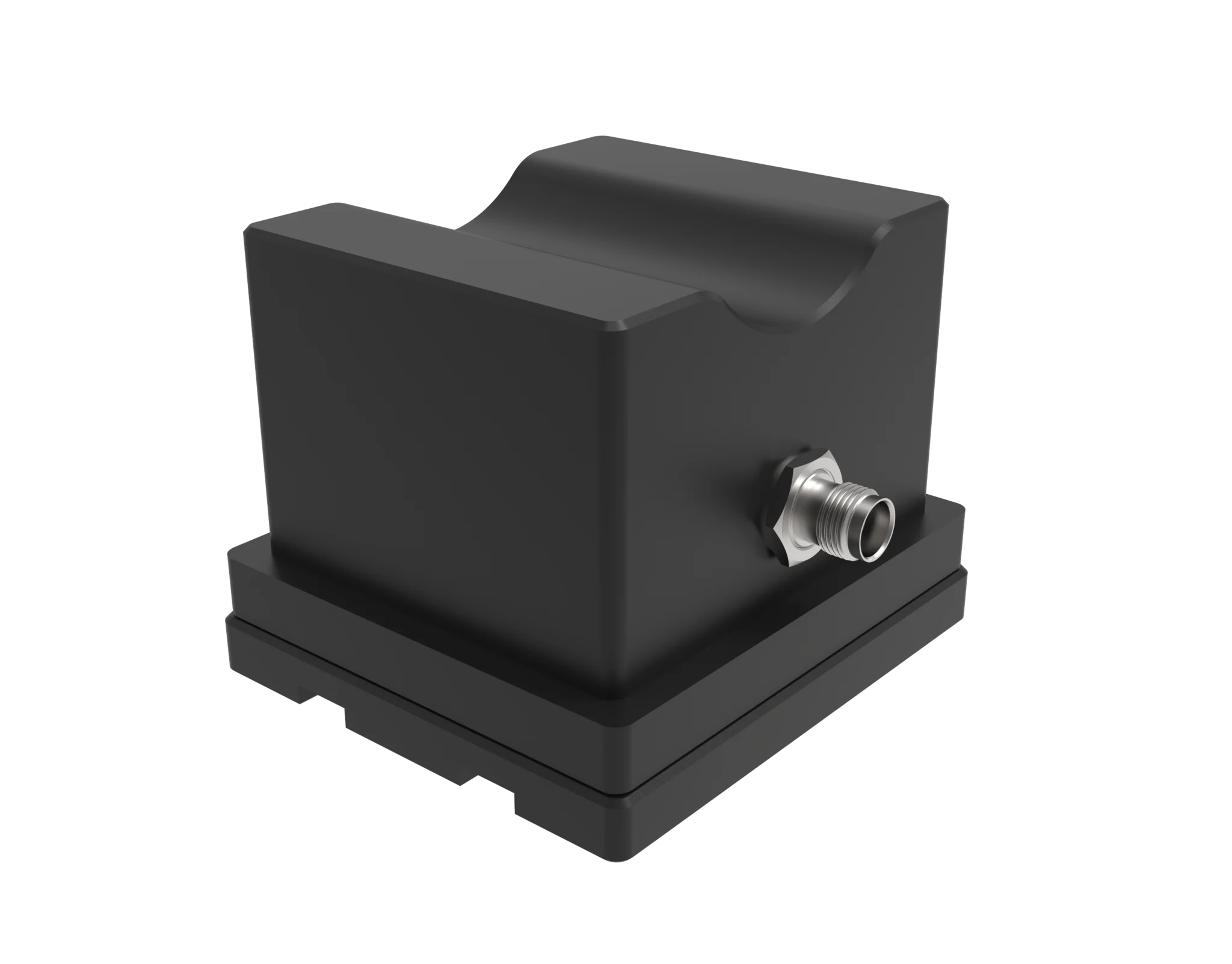

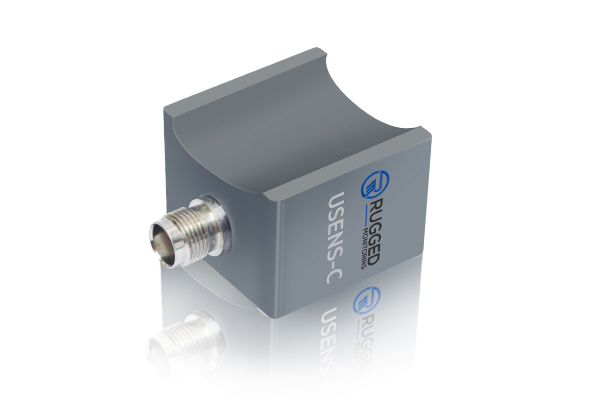

PARTIAL DISCHARGE SENSOR

High-Performance Reliability with our Robust UHF PD Sensor

A rugged, reliable, and high-performance UHF PD Sensor designed for power cables and switchgear, ensuring durability, safety, and longevity in demanding environments.

Data Sheets
Get a Quote
Features
  • Ultra-High Frequency PD Detection
  • Rugged and Reliable Design
  • IP65 Rated
  • Integrated Transient Overvoltage Protection
  • Easy Installation
  • Customizable Dimensions
Benefits
  • Weather-Resistant Design
  • Durable and Reliable
  • Safety from transient surges
  • Easy installation
  • Broad Compatibility
  • Tailored Fit
Applications
  • Online periodic partial discharge monitoring
  • Online PD measurement during HV AC testing
  • Multiple-point PD monitoring
  •
Technical specifications
Frequency Response
30 MHz – 1000 MHz
Sensor Sensitivity
> 5 mV/mA
PD Output
TNC -Type female connector
Connector Circuit Impedance
50 Ω
Dimensions (L * H) in mm

84 mm Length * 75 mm Height

Sensor Diameter
49 mm standard (other diameter based on cable diameter)
Sensor Body material
Acetal
Standard Design for
cover all cable diameters and Earth strip
Weight
<0.8kg
Installation Position
On cable termination, joints outer jackets and cable sheath
Ingress Protection (IP) (IEC 60529)
IP 65
Ambient (Operating Temperature)
-30 ⁰C to +120 ⁰C
Storage Temperature
-30 ⁰C to +120 ⁰C
Operating Humidity
95% humidity at 50 ⁰C

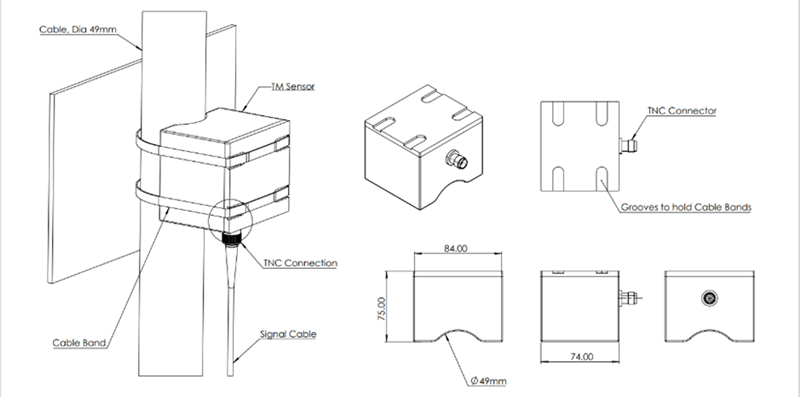

Product Drawing

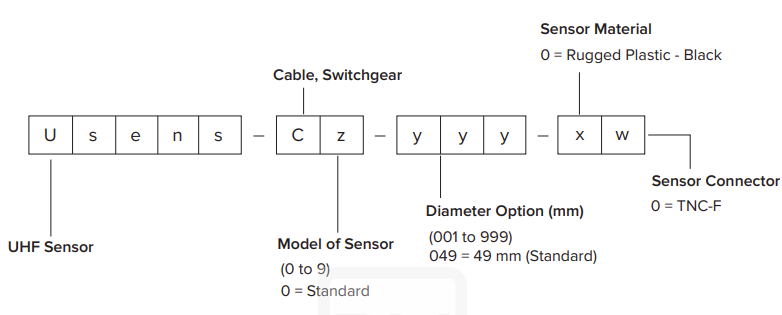

Ordering Code
