UHF PARTIAL DISCHARGE SENSOR.

KEY FEATURES

  • Wide band, Highly Sensitive, UHF PD Sensors for Transformer Drain Valves
  • High Dielectric, Rugged, and Reliable design
  • Built-in overvoltage (transient) protection
  • Shielded to avoid electromagnetic interface
  • 100% Leak proof and pressure tested for 10 bar
  • Suitable for extreme environment, Outdoor Substation
  • Customized according to Transformer Drain Valve design

Highly sensitive and accurate Partial Discharge sensor for measuring ultra high frequency signals emitted by partial discharge activity inside Transformers.

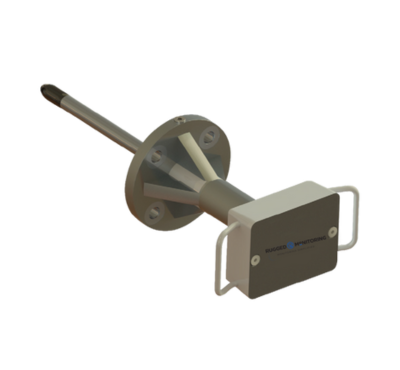

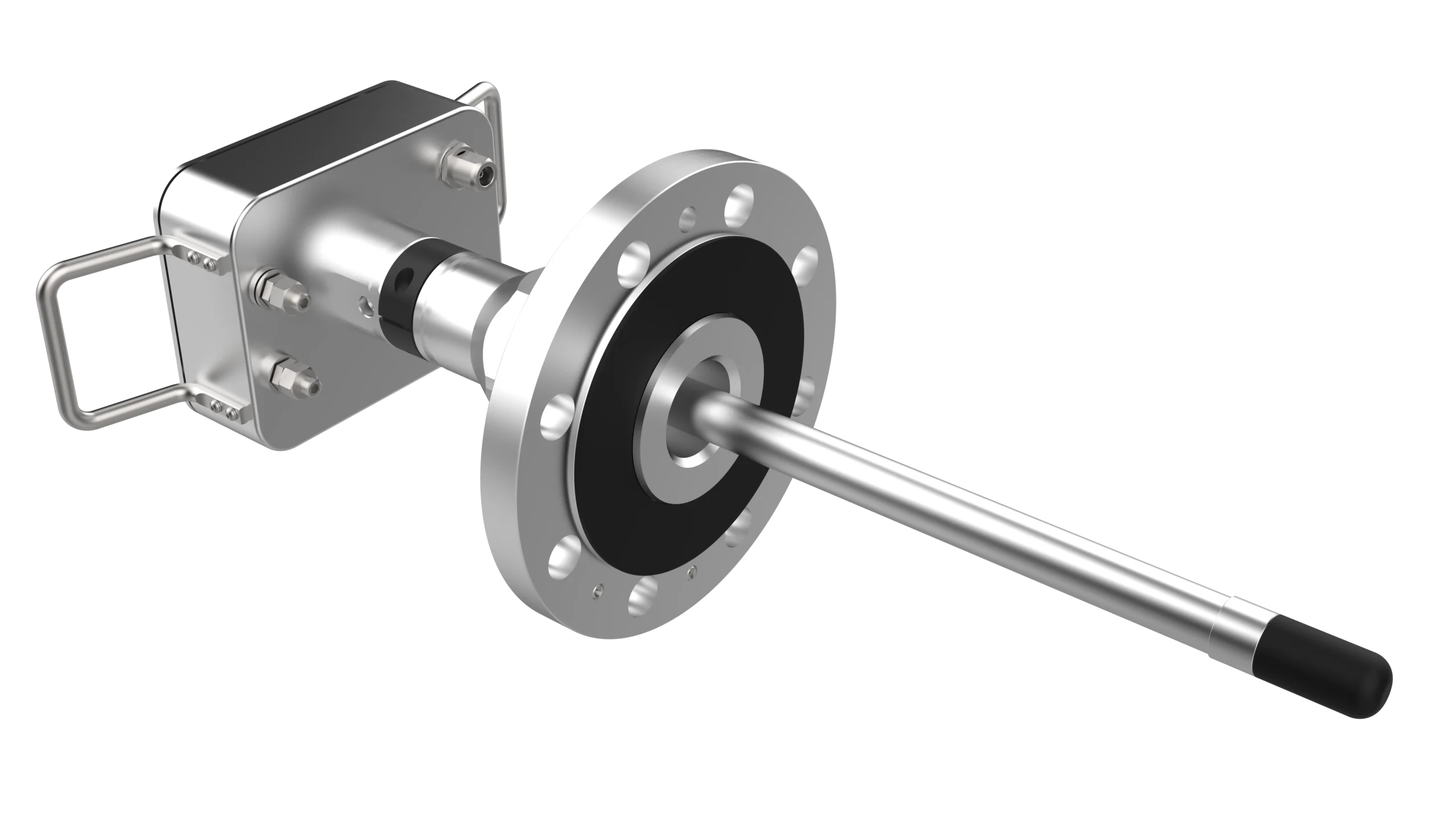

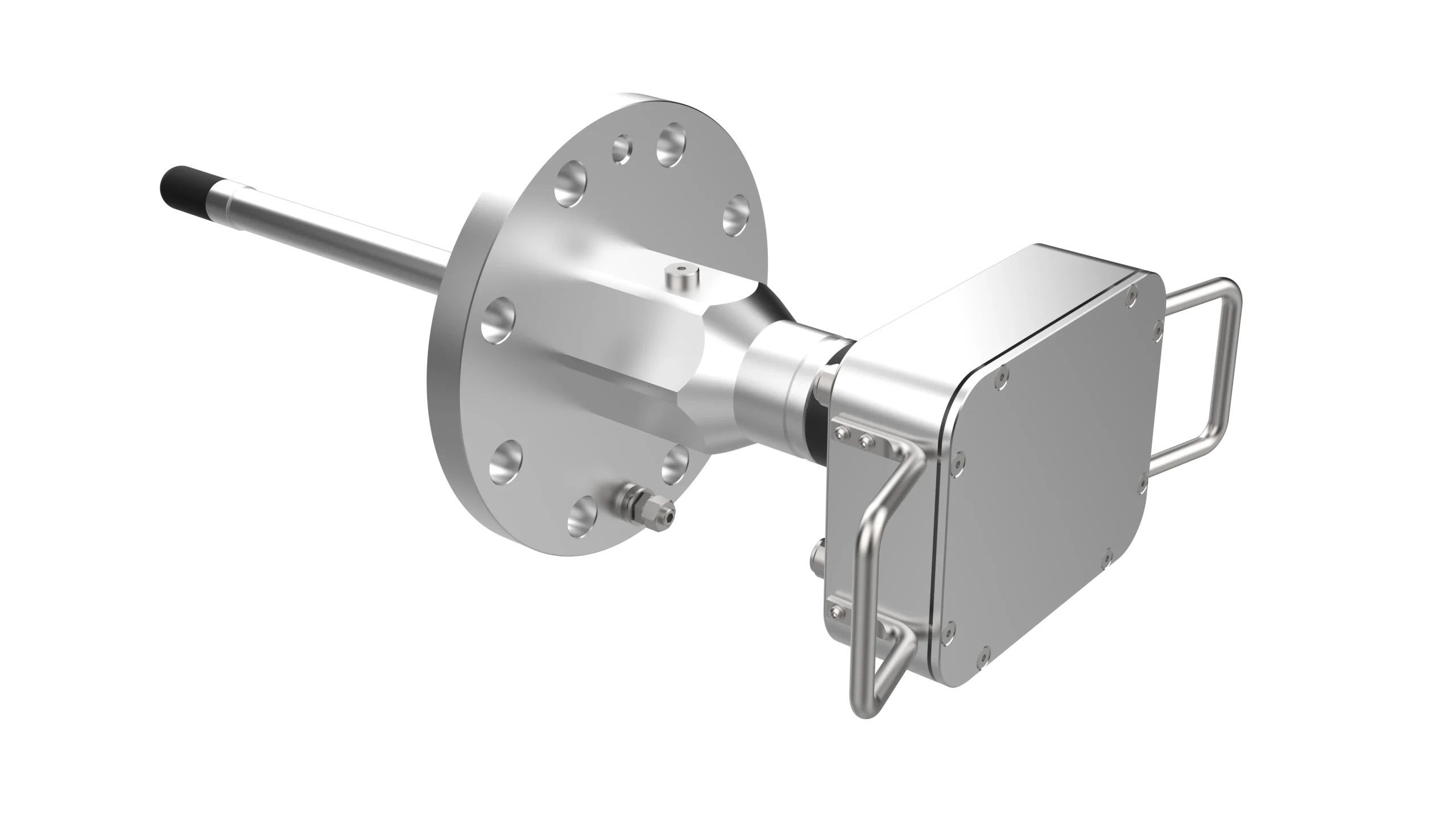

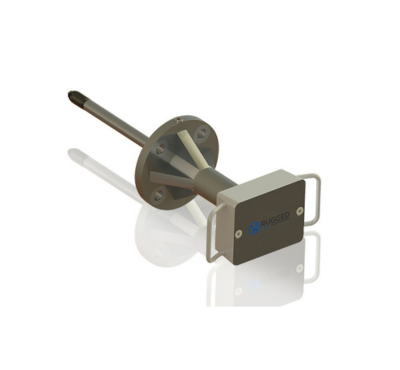

USENS-V is an Ultra High Frequency (UHF) antenna that can detect smallest UHF frequencies emitted by the partial discharge (PD) activity. The sensors are suitable for all types of Transformers, and easy installation on the transformer drain valves. The IP65 rated ingress protection allows sensor to be installed at Outdoor installations. Their wide band (200 – 2000 MHz) frequency response and high sensitivity (up to -90dBm) enables lower cost of PD monitoring system and higher ROI (Return on Investment).

  • Continuous Online Partial Discharge Monitoring
  • Periodic Partial Discharge Testing and Measurements
  • High Voltage Testing during Commissioning
  • Power Transformer PD Testing and Monitoring
  • Reactor PD Testing and Monitoring
  • Distribution Transformer PD Testing and Monitoring
  • Higher sensitivity (-90dBm) ensure higher ROI of monitoring
  • Wide frequency response, compatible with all PDM systems
  • Easy installable, and High Dielectric strength, Safest Sensors
  • Shielded Sensor, Noise Immunity
  • Built-in overvoltage protection keeps the PDM electronics safer
  • IP68 protection and rugged design, suitable for outdoor installations
  • Leak proof sensors enables safety and 0% oil leakage
  • Customizable according to Transformer Valve design and customer requirements
TECHNICAL SPECIFICATIONS
UHF Frequency Response
200 - 3000 MHz
Sensitivity
up to -90 dBm
Average Effective Height over 500MHz – 1500MhHz
15 mm+
Min. Effective Height over 500Mhz – 1500Mhz
6 mm+
Withstand Voltage
up to 1500 kV
Output
N-Type connector; Customized option available
Connector Circuit Impedance
50 Ω
Pressure Testing
up to 10bar
Vibration Testing
Suitable for HV - Transformer applications
Ingress Protection (IP)
IP68
Ambient (Operating Temperature)
-60 ⁰C to +150 ⁰C
Storage Temperature
-60 ⁰C to +150 ⁰C
Operating Humidity
95% humidity at 50 ⁰C

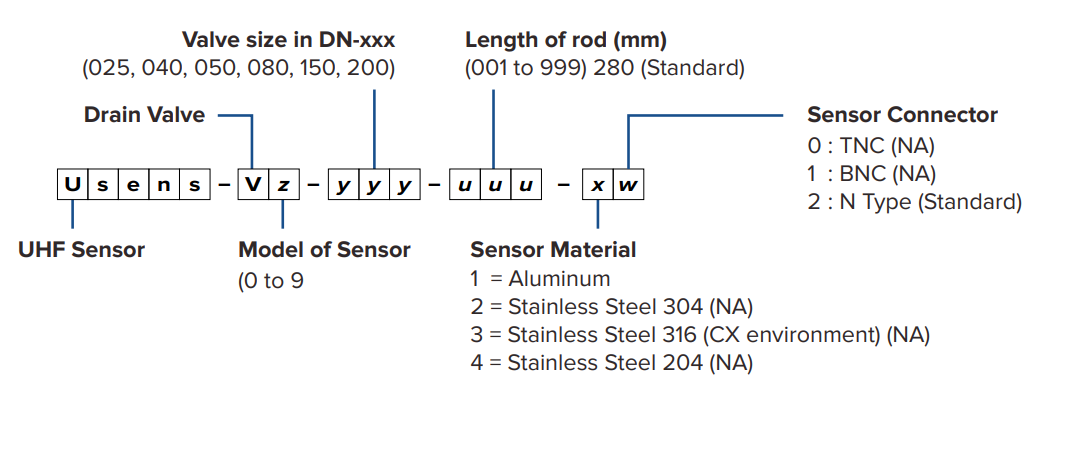

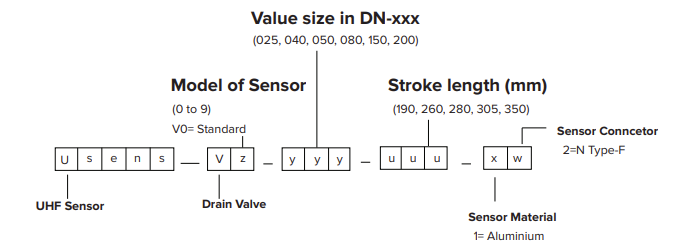

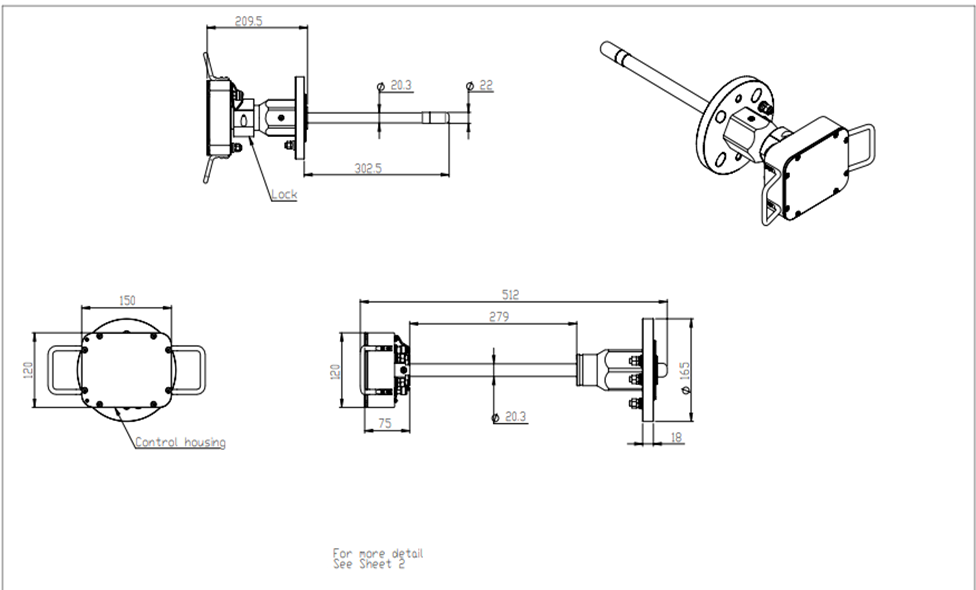

Dimensions
Customized as per Transformer Valve design
Weight
app. 2.0 KG; Customized as per customer requirements
Install Position
Inside drain valve of Transformer
Signal Cable
Very low attenuation UHF (Coax) cable
