Transformer Partial Discharge Monitoring
Partial discharge (PD) is one of the earliest and most reliable indicators of insulation deterioration inside power transformers. It is the continuous detection and analysis of localized electrical discharges within transformer insulation systems under high-voltage stress. These discharges do not immediately bridge insulation gaps, but they degrade insulation over time and are often precursors to major transformer failures.
PD activity can originate from defects such as insulation voids, sharp edges, contamination, moisture ingress, or aging materials. Because PD occurs internally and is often invisible through conventional inspection methods, online monitoring is essential to detect it during normal transformer operation.
Transformer partial discharge monitoring continuously detects electrical discharge activity within the insulation system while the transformer remains energized. Unlike periodic offline testing, online PD monitoring provides real-time visibility into insulation behavior under actual operating conditions.
Highly precise sensors installed at critical points track PD activity in real time. This continuous stream of information is aggregated to edge devices, which seamlessly communicate the digitized data to a centralized platform. Advanced algorithms are applied to real-time partial discharge data to distinguish normal background activity from abnormal behavior caused by insulation defects or aging. As insulation degradation progresses gradually, changes in PD intensity and repetition are identified early through these advanced analytics.
This enables predictive maintenance by forecasting failure risk and allowing corrective action to be planned before insulation breakdown occurs. As a result, utilities reduce unplanned outages, prevent secondary damage, and proactively manage transformer insulation health.
RM offers an end-to-end partial discharge (PD) monitoring system for transformers, enabling continuous, real-time insights into the health & performance of insulation.

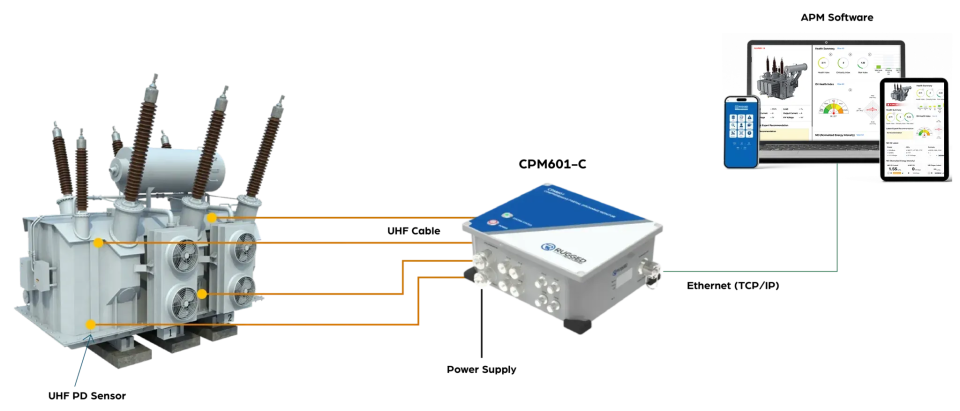

Our non-intrusive, highly sensitive PD sensors are strategically installed at critical locations to detect discharge activity within the insulation system as it happens. These signals are captured by our advanced PD edge devices that filter out noise, preprocess the data, and ensure reliable acquisition without interrupting the operation of live transformers.
The processed data is then transmitted to RM EYE, Rugged Monitoring’s APM platform. Here, advanced analytics evaluate the magnitude, patterns, and long-term trends of the PD activity. By correlating discharge behavior with operating conditions, RM EYE facilitates condition-based assessment, predictive maintenance planning, and centralized visibility across transformer fleets. This helps utilities proactively manage insulation risks and prevent unexpected failures.
Unlike thermal or mechanical indicators, PD directly reflects electrical stress inside insulation. Our complete PD monitoring system provides real-time insight into how insulation behaves under voltage stress, switching events, and transient conditions, something other monitoring methods cannot reveal.
Our transformer PD monitoring system tracks magnitude, repetition rate, and pattern evolution in real-time. Thus, empowering utilities to differentiate between stable, tolerable PD and progressive, high-risk activity enables prioritization of maintenance resources across transformer fleets.
PD often precedes a temperature rise or the formation of dissolved gas. With our continuous PD monitoring system, utilities gain an earlier warning window than DGA or thermal monitoring alone, allowing intervention before secondary damage occurs.
Our comprehensive PD monitoring system helps identify where insulation defects are developing within the transformer (windings, spacers, leads, or interfaces). Thus, enabling targeted interventions instead of broad, disruptive maintenance actions.
High-sensitivity PD sensors capture electrical discharge signals generated by insulation defects.
Advanced monitoring units perform noise separation, signal preprocessing, and data extraction.
Advanced analytics to evaluate discharge patterns and trends to provide actionable insights.
