Portable PD Monitor (HF)

HPM601-P

HF PD EDGE DEVICE

Effortless PD Measurements with Rugged Maximized Precision

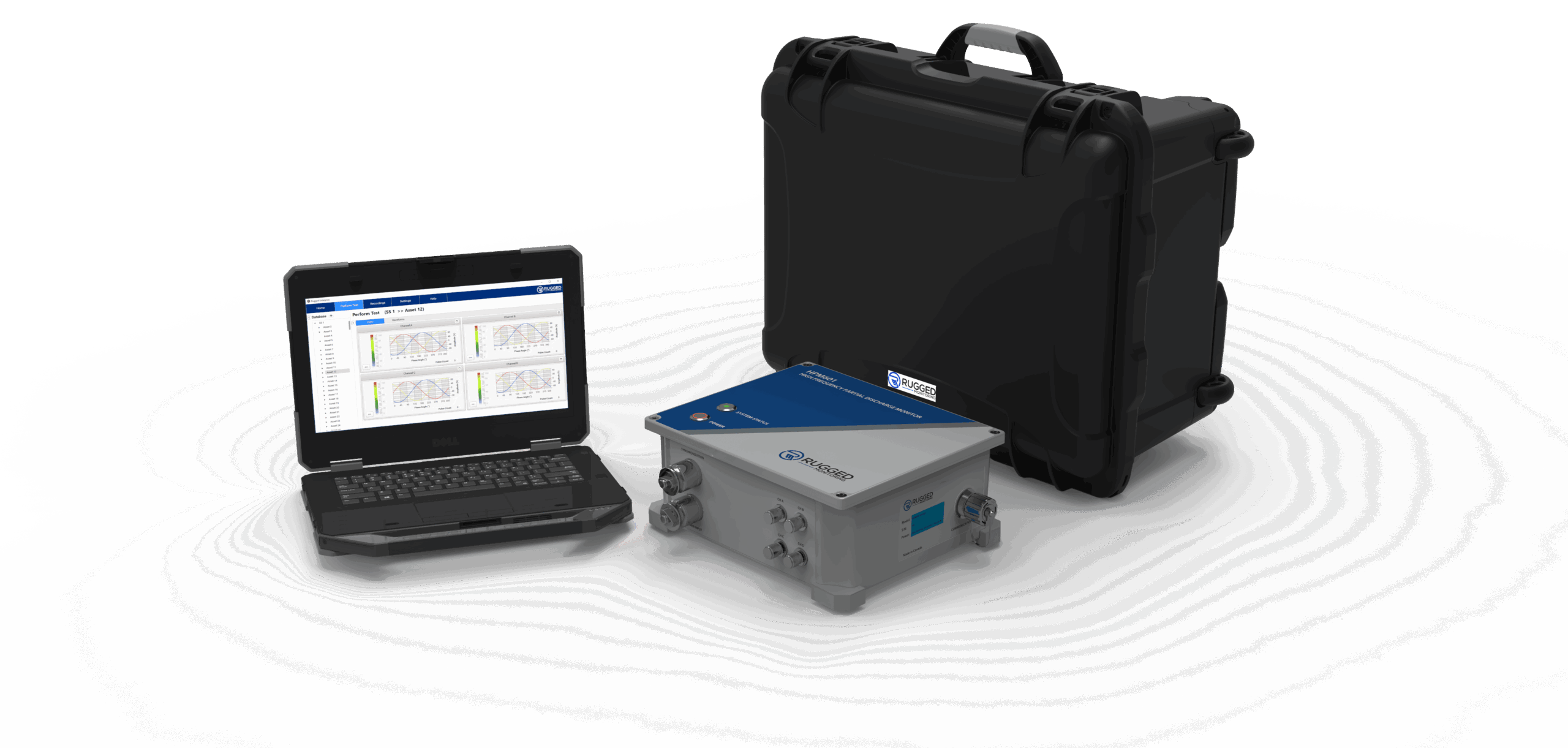

Our high-frequency PD portable solution is a rugged and compact design for effortless online and offline PD monitoring of power cables, switchgear, accessories, and rotating machines. It is ideal for periodic testing and diagnostics.

Features

Durable and Compact Design
4 Synchronous Input Channels
Advanced Software Integration
High-Speed Data Communication
Optional Rugged Laptop
IP65 Rating

Benefits

Durable and Reliable
Enhanced Noise Management
Robust Data Handling
Adaptable to Unique Needs
Versatile Measurement Capabilities

Applications

Online Periodic PD Monitoring
Offline PD Measurements during HV AC Testing (Resonant test set, VLF, OWTS)
Multiple Point PD Monitoring
Cables and their Accessories
Rotating Machines
AIS/GIS Switchgear/Switchboards
Power Transformers

Technical specifications

Sampling Rate

250 MS/s

UHF Frequency Range

0.01 – 100 MHz

No. of Channels

4 No’s or 8 No’s Option available

HF Amplitude Range

1mV to 2000mV

HF Noise Elimination

Software controllable band pass filter

Communication Protocols

Ethernet Copper-RJ45. Proprietary TCP/IP

PD Measurements Type

IEC 60270
HF and VHF
HVAC
Acoustic

Power Rating

50W

IP Rating

IP 65

Synchronization

Internal Raw Power Supply
External with Rogowski Coil, Electrical Field Sensor
110 Volt VT signal

Compatible Sensors

HSENS-T, HSENS-H, HSENS-CC, BSENS, ASENS, any HF sensor range up to 100 MHz

Ambient Temperature

-30 °C to +60 °C

Storage Temperature

-40 °C to +85 °C

Dimensions

299.94mm(L)x354.92mm(W)x125.75mm(H)

Software

Windows based (PD Connect- Default)

Asset Types

Transformers Switchgear AIS and MV Panel Power Cables, Rotating Machines

Product Drawing

Ordering Code
