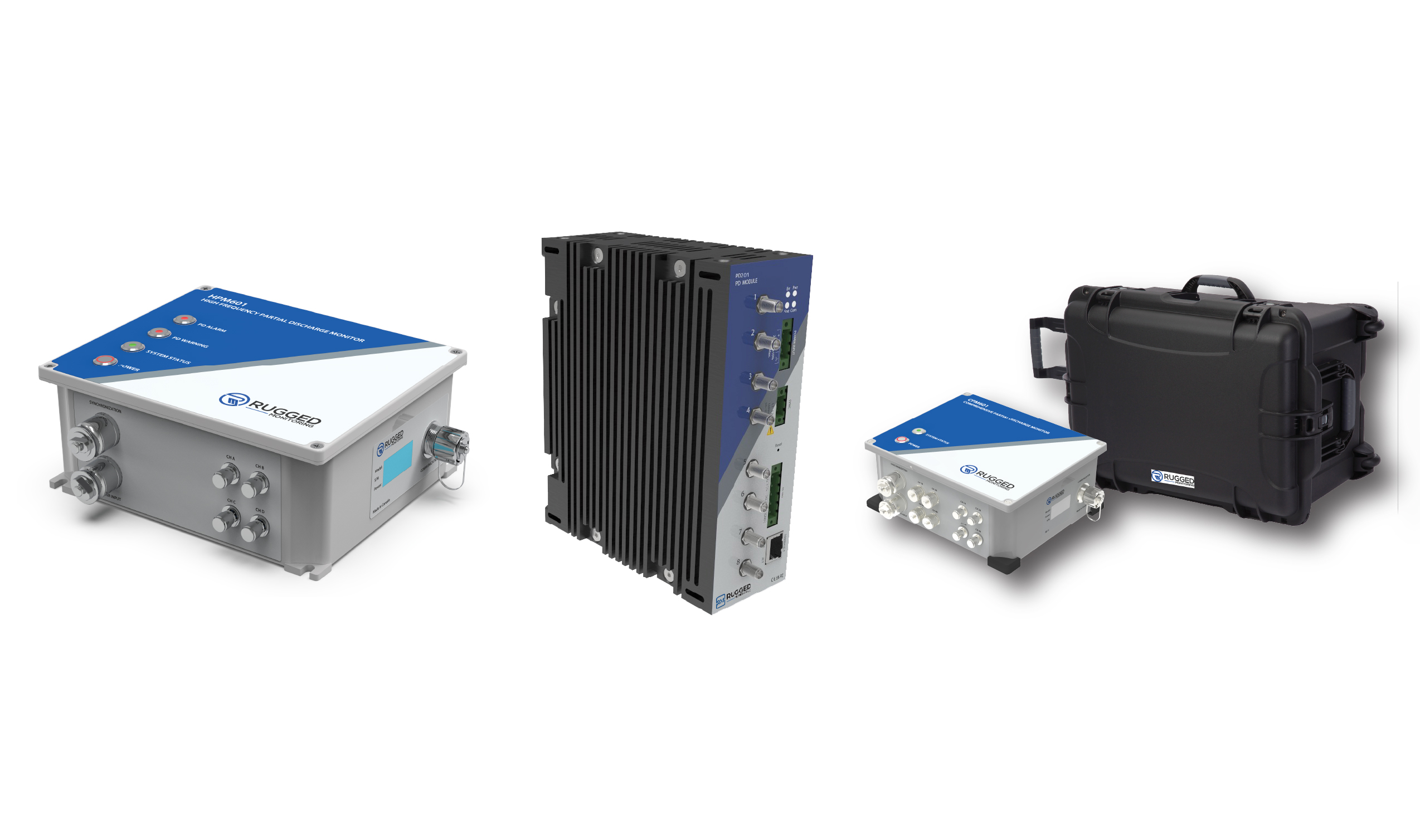

Partial Discharge (PD) monitors are advanced diagnostic systems that work in conjunction with PD sensors and remote monitoring software to collect, analyze, and communicate PD events across various electrical assets. PD monitors are composed of both hardware and software components to ensure continuous real-time data acquisition of critical PD activity.
Most PD monitors include:
Rugged Monitoring’s PD monitors capture and analyze high-frequency energy emitted during PD activity to identify the type, severity, and location of insulation degradation. When a localized dielectric breakdown occurs inside or on the surface of insulation, PD sensors placed at various critical points capture the emissions. These are sent in the form of analog signals to PD monitors, which convert them to digital waveforms and record various parameters for further processing.
Using bandpass filtering, phase or time-gating, and cross-correlation, Rugged Monitoring’s PD monitors isolate and eliminate noise and false positives. This digitized PD data is communicated to advanced asset performance management or remote condition monitoring software for further analysis and to provide real-time, data-driven diagnostics of PD faults.
When compared to traditional insulation diagnostics, Rugged Monitoring’s PD monitor offers an indispensable solution in the modern asset management framework. With high acquisition bandwidth, fast sampling rate, and high sensitivity, our solutions ensure accurate diagnosis of PD signals. Our online and offline systems, along with compatible PD sensors covering various HF to UHF ranges for MV/HV/EHV/UHV electrical assets, provide early warning of developing insulation faults, helping network operators prevent unplanned outages.
Designed for both indoor and outdoor use, RM’s PD monitors offer multi-channel, scalable options that seamlessly integrate with remote condition monitoring software (PD Connect/RM EYE) for optimized and cost-effective partial discharge monitoring.
With easy installation and customizable options across diverse asset applications, Rugged Monitoring’s PD sensors enable accurate and reliable condition monitoring of PD activity.

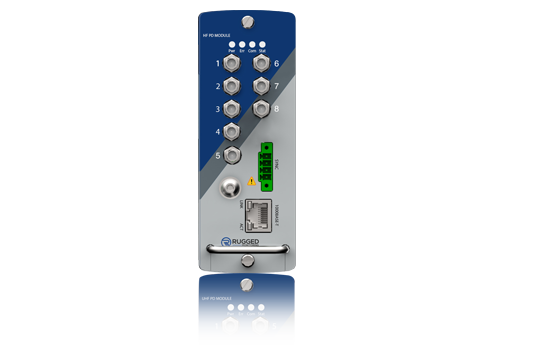

PD201 is a compact, high-performance PD monitor designed for continuous PD detection and insulation assessment in transformers, switchgear, power cables, and rotating machines. Available in 4 or 8 channel configurations, it enables simultaneous data acquisition without multiplexing and operates within a 0.01 – 100MHz bandwidth at 100 MS/s per channel for precise PD signal capture and classification.

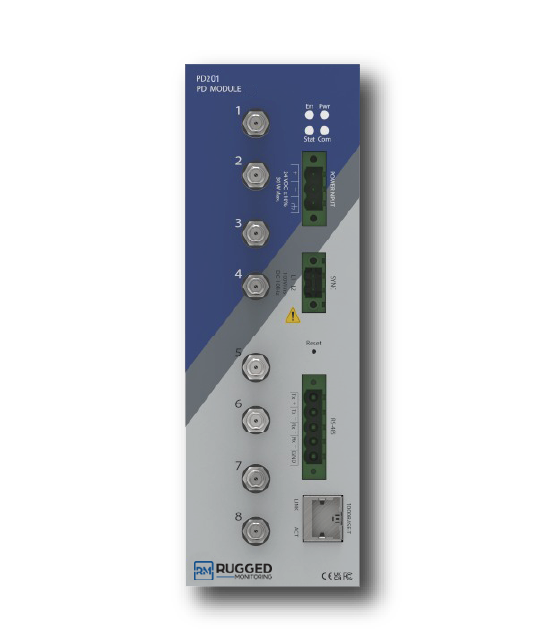

The PD201 New Gen is our advanced, high-performance PD monitor designed for accurate and reliable performance across a wide range of critical electrical assets. Combining the capabilities of high-frequency (HF) and Ultra-High-Frequency (UHF) technologies, it ensures precise PD detection and analysis, supporting 4 or 8 configurable channels for seamless integration with various PD sensors operating across an extensive frequency range.

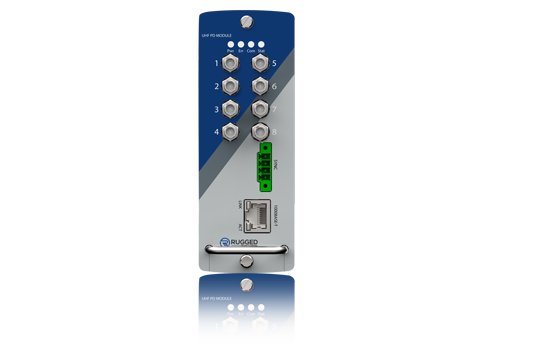

The PD211 is an advanced PD monitor that utilizes Ultra High Frequency (UHF) technology for accurate signal acquisition and analysis. It supports 4 or 8 channels in two configurations, enabling connection with an equal number of UHF PD sensors. The system is compatible with sensors operating within the 300 MHz to 2000 MHz frequency range, ensuring seamless integration across various monitoring setups.
The UPM601-P is Rugged Monitoring’s portable PD monitor, designed to detect and analyze ultra-high-frequency (UHF) signals in high-voltage electrical assets. It provides real-time insights into insulation health, enabling early fault detection and reducing the risk of unexpected failures. Compact and field-ready, it is ideal for the commissioning, diagnostics, and condition monitoring of transformers, switchgear, circuit breakers, and power cables.

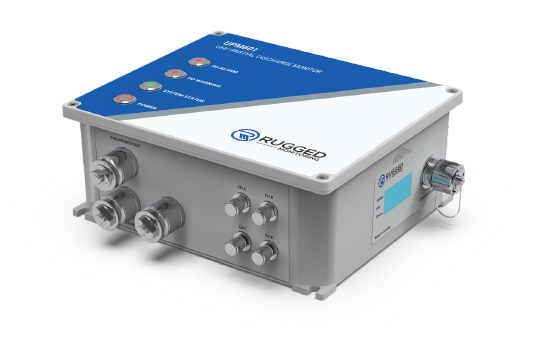

UPM601-C is Rugged Monitoring’s advanced PD monitor, designed to detect and analyze ultra-high-frequency (UHF) signals in electrical assets. By providing real-time insights into insulation degradation, it enables early fault detection and proactive maintenance, reducing the risk of unexpected failures. With the ability to detect critical defects on-site, UPM601-C is an essential tool for ensuring the reliability and longevity of transformers, switchgear, circuit breakers, and power cables.

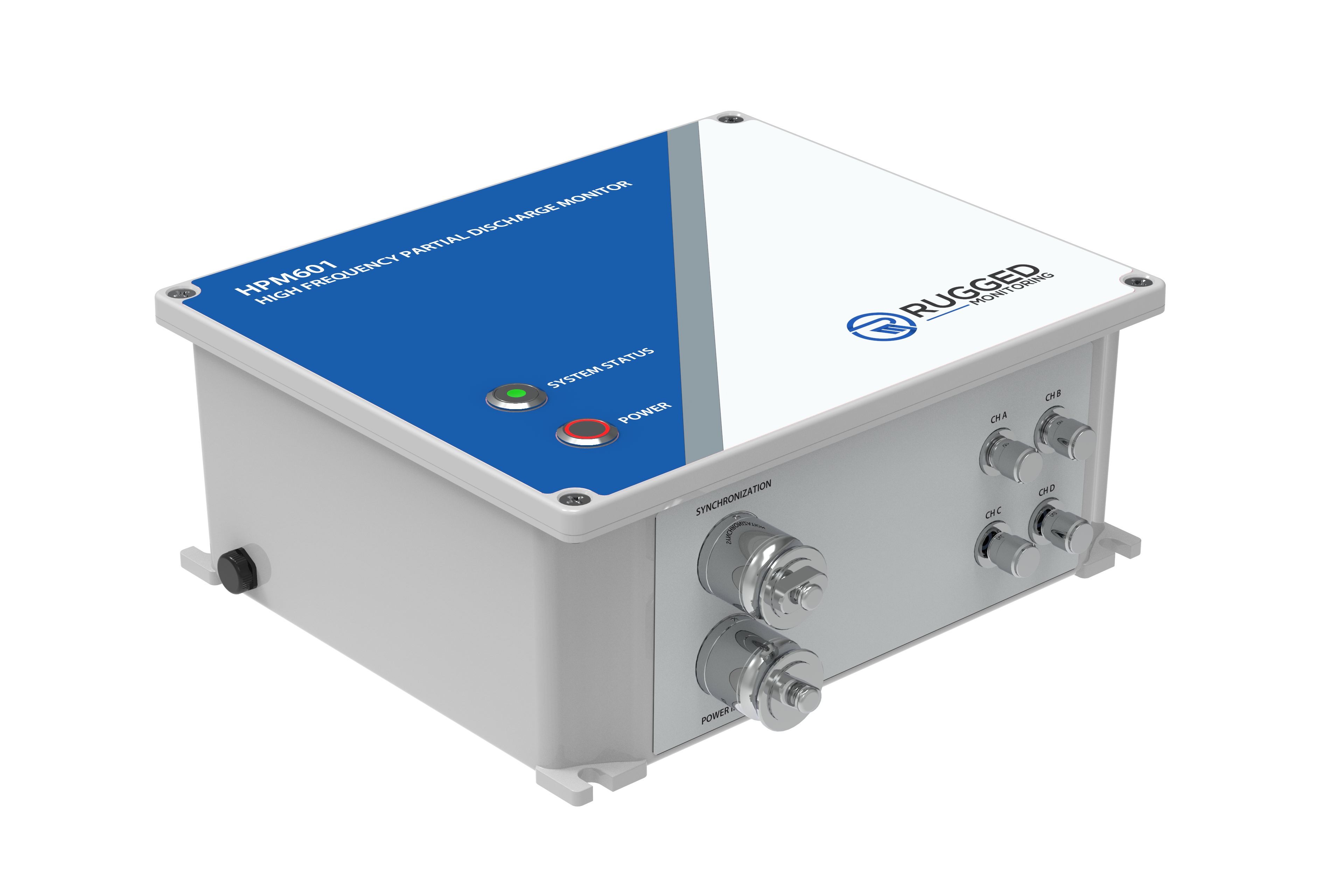

The HPM601-P is a high-frequency PD monitor engineered for precision and reliability in modern power systems. Available in 4 or 8-channel configurations, the system enables synchronous, multi-point PD measurement and analysis. It operates across a wide frequency range of 0.01 – 100 MHz, making it suitable for detecting a broad spectrum of partial discharge signals. Built with a compact and rugged IP65-rated enclosure, the HPM601-P is designed for durability and portability, making it ideal for field operations and laboratory environments.

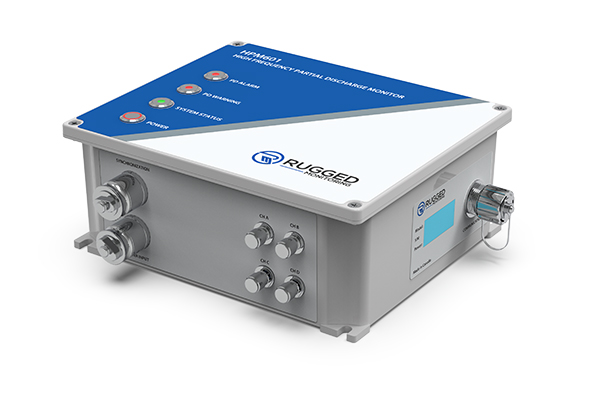

HPM601-C is Rugged Monitoring’s highly sensitive PD monitor, which helps identify and record high-frequency (HF) signals to assess insulation degradation in real-time. By providing timely alerts about potential faults, our PD monitor enables proactive measures before a complete electrical asset breakdown occurs. It also features advanced capabilities such as transient overvoltage protection, configurable band-pass filters, and a wide sampling rate, making it suitable for online testing and monitoring.
CPM601-P is Rugged Monitoring’s advanced portable dual-frequency PD monitor designed for detecting and analyzing high-frequency (HF: 10 kHz—100 MHz), very high-frequency, ultra-high-frequency (UHF: 300 MHz—2000 MHz), and acoustic signals across critical electrical assets such as Transformers, Rotating Machines, Switchgear – GIS, AIS, MV Panel, Power Cables, and GIS Circuit Breakers. It enables real-time insulation assessment and supports early fault detection, helping operators take proactive measures before failures occur.
The CPM601-C is Rugged Monitoring’s advanced PD monitor, designed to detect and analyze both high-frequency (HF) and ultra-high-frequency (UHF) PD signals in electrical assets. By continuously monitoring insulation health, CPM601-C enables the early detection of insulation defects, preventing failures in Transformers, switchgear (GIS, AIS, and MV Panel), Rotating Machines, Power Cables, and GIS circuit breakers. Equipped with automatic alarms and alerts, it ensures operators are notified when PD activity surpasses critical thresholds, allowing for timely intervention.
