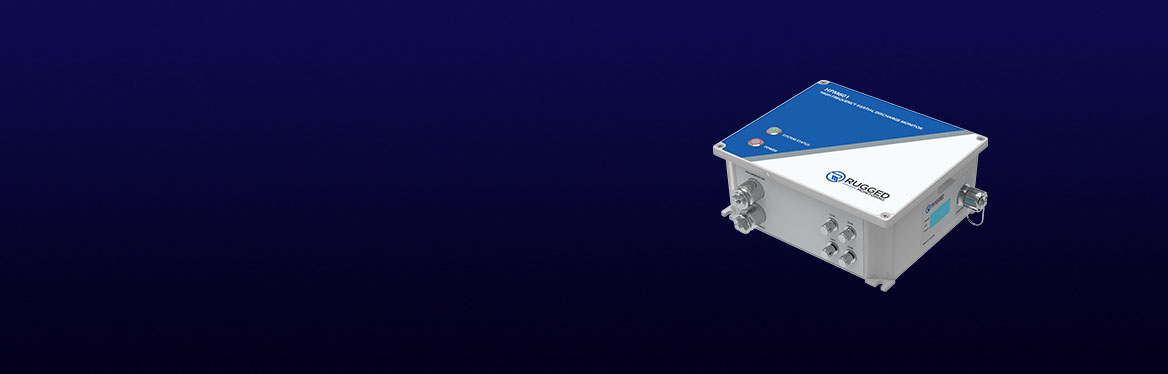

HPM601-C

HPM601-C

Highly reliable and rugged online Continuous Partial Discharge Monitors for permanent installation, detecting and localizing incipient faults in the insulation of high voltage assets like cables, switchgears, rotating machines, and transformers.


Summary Products

research labs

partial-discharge-monitors-hpm601-c

Rugged design, designed for reliability, 3 Phase synchronous partial discharge monitoring equipment.

  • - Rugged and simple design, easy plug and play
  • - 4 synchronous PD input channels
  • - Highly accurate PD detection analytics
  • - LED indicators for PD alarm and warning indications
  • - IP65 rated, suitable for outdoor environment
  • - Range of communication options for integrating with third-party systems
  • - Rugged Enterprise software for multisite monitoring

Description

Rugged Monitoring High-Frequency Partial Discharge (PD) monitoring solution is a platform that enables HV asset owners to keep monitoring PD due to insulation defects 24/7. The system can also be used to perform offline PD measurements during HVAC testing. Compact size and rugged enclosure of monitors make it easy to get installed and get started. Solution can communicate with its user over IEC61850 or using Rugged Monitoring proprietary Rugged Enterprise software suite. System simple design enables it to get interfaced with third-party protocols.

Each Monitor is capable of transferring data directly to Rugged Enterprise software installed on Server or data can be temporarily stored in the device in case of communication loss between server and monitor. Thousands of pulses per second can be transferred to the Server enabling the user to generate fast and reliable Phase Resolved Partial Discharge (PRPD) graphs. PRPD graphs help the user to identify the type of PD in HV assets. The monitoring solution is packed with all the necessary tools that help to perform effective PD measurements. Integrated variable amplifiers and onboard denoising features help during onsite testing even in case of the presence of huge noise.

There is a dedicated team for application-specific customizations for sensors, monitor configuration and software integration to simplify cable data collection of testing and monitoring applications.

Applications

  • - Online PD monitoring for HV and MV Cable Insulation, Termination and Joints
  • - Online PD measurement during HVAC testing of Power Cables (Resonant, VLF, OWTS Testing)
  • - Online PD monitoring for Rotating Machines
  • - Online PD monitoring for MV Switchgear Panels (Metal-clad)
  • - Online PD monitoring for GIS (Gas Insulated Switchgears)
  • - Online PD monitoring for Transformers and Reactors
partial discharge monitor applications

Benefits of Partial Discharge monitors

benefits of partial discharge monitor
  • - Improve the reliability of your HV/MV network with real-time detection of developing faults
  • - Enable condition-based maintenance and save maintenance cost
  • - Extend HV/MV asset life and improve company profits
  • - Peace of Mind – No more faulty installation and commissioning of HV/MV assets
  • - Avoid financial and legal losses from sudden failure of HV/MV assets
  • - Accelerate substation automation and move to Automatic Workforce Management
  • - Reduce the cost of monitoring with Enterprise Level PD monitoring
  • - Improved ROI (Return on Investment) with rugged, robust and reliable PD monitoring system

Technical Specifications

SoftwareRugged Enterprise
Dimensions260mm(L)x310mm(W)x120mm(H)
Synchronization Inputs 2 Inputs, Software Selectable (Internal & External)
Input Power35W Max
Ambient Temperature-30C - 60C
Storage Temperature-40C - 85C
IP Rating IP65
Communication CableMultimode Fiber / Cat5e
Communication TypeEthernet Fiber / Copper
Remote CommunicationIEC61850 (Optional) Propritary Rugged Connect for remote communication Customized third party interface on request
Data Transfer Rate400 Mbps (Depending on operating system and connection)
Data Transfer Low Resolution 50,000 pulses per second for 4 simultaneous channels
Data Transfer High Resolution10,000 pulses per second for 4 simultaneous channels
SSD Storage Memory1 TB Industrial Grade SSD
Amplificationupto 50 dB, Software selectable
Bandwidth0.01 - 100 MHz
FilteringSoftware configurable band pass filters
Sampling Rate250 MS/s
Channels4 Simultaneous channels

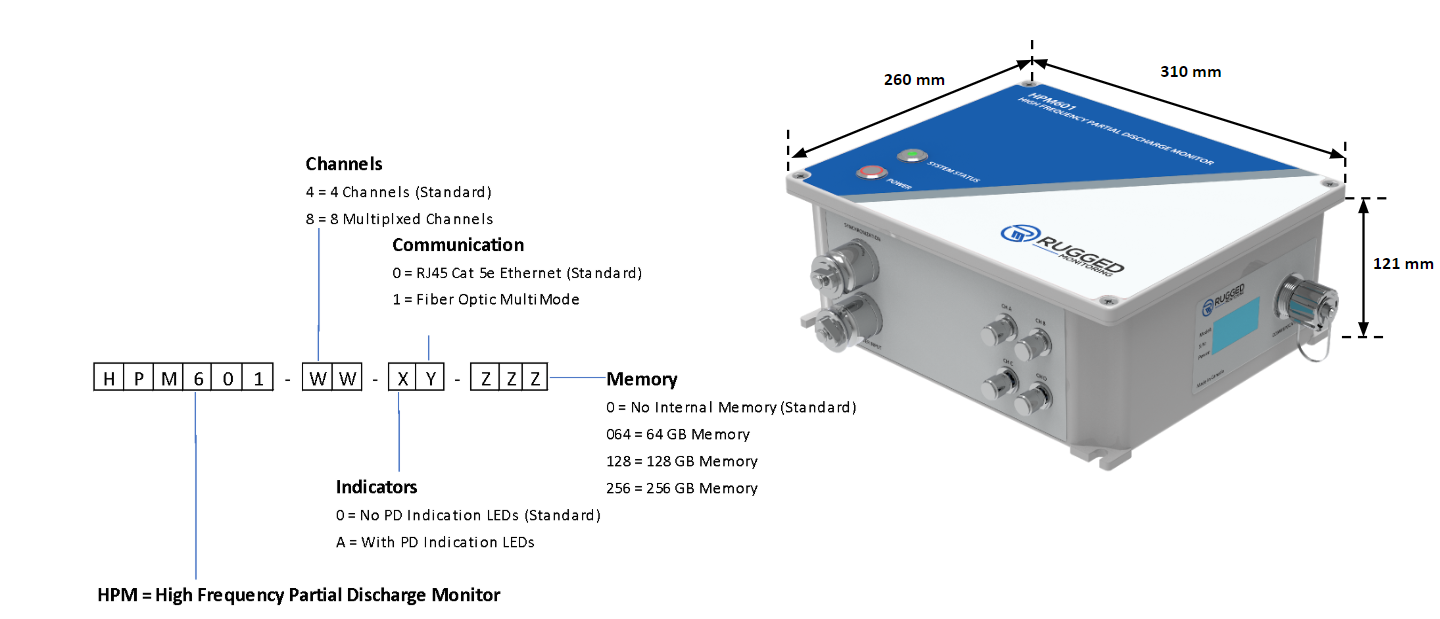

Ordering Code
