HSENS-H

HSENS-H

Rugged, transient proof and ultra-sensitive High-Frequency Current Transformer (HFCT) sensors for capturing high-frequency signals from Partial Discharge activities in the insulation of cables, switchgears, rotating machines, and transformers.

Get Quote

Summary Products

research labs

Rugged and reliable design, IP65 rated, overvoltage protected, PD measurement at Cables (and their accessories), Switchgears, Rotating Machines, and Power Transformers

  • - High-Frequency Current Transformer
  • - Rugged, reliable design
  • - IP65 rated
  • - Split-core design for easy installation
  • - Transient overvoltage protection integrated inside Sensor
  • - Different options of internal diameter dimensions
  • - RG223 high noise immunity cable
  • - TNC connector for reliable connection

Description

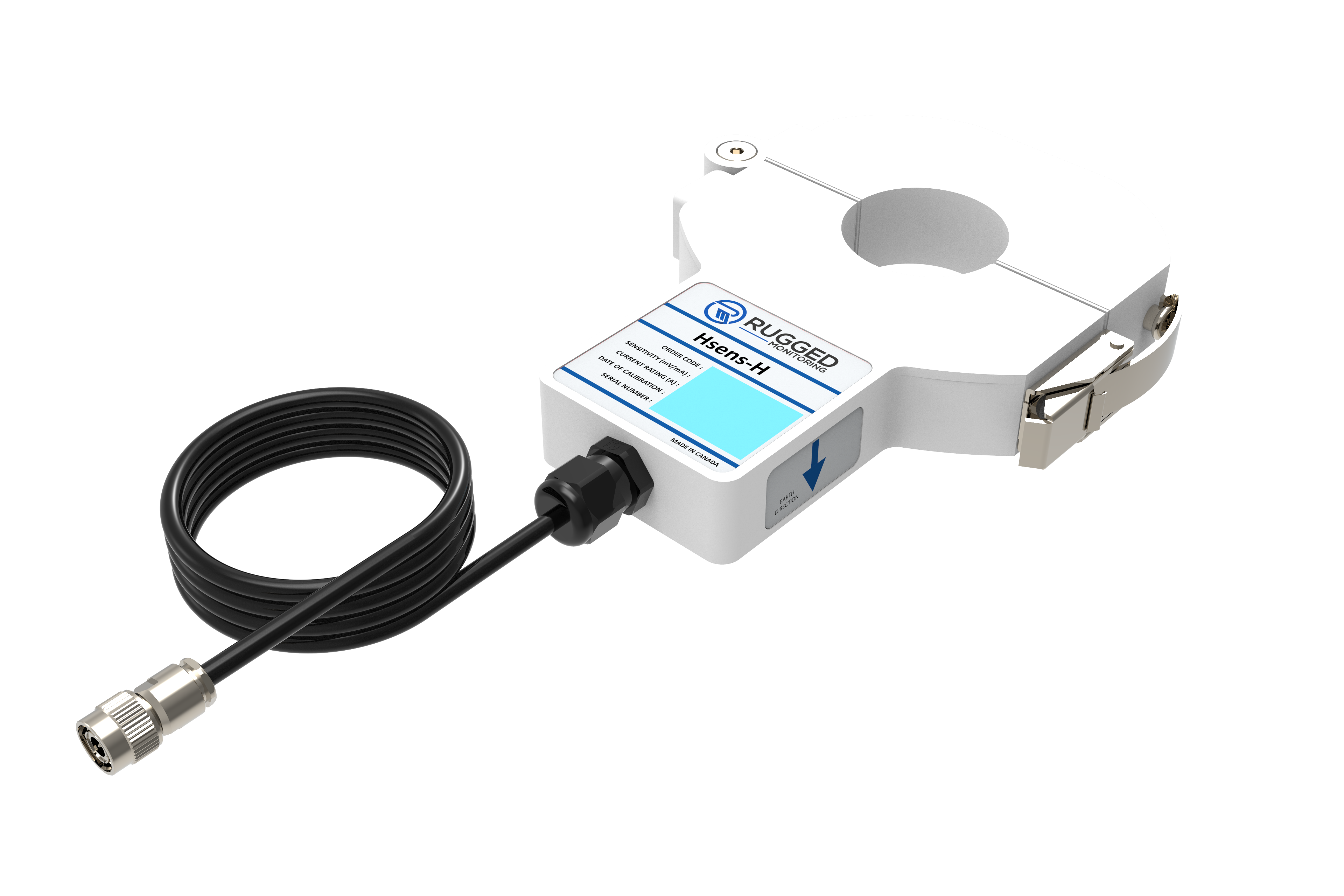

Hsens-H is a High-Frequency Current Transformer sensor. It is a split core and an inductive type sensor that can be clamped around the earth (ground) shield to measure PD signals. Based on power cable termination condition, an HFCT sensor can also be clamped around cable insulation without earth shield or around the cable with earth shield looped back for PD measurements. For HFCT clamped around the cable insulation without earth shield or cable with earth shield looped back, a high current variant can be used for rated load current of cable.

The sensor is IP65 rated and features integrated transient overvoltage protection inside sensor. Transient protection will help in minimizing transients that can be expected during PD monitoring

Applications

  • - Online periodic partial discharge monitoring
  • - Offline PD measurement during HV AC testing
  • - Multiple point PD monitoring
  • - Cables, joints and terminations
  • - Rotating machines
  • - AIS/GIS switchgear
  • - Power transformers
partial discharge sensor applications

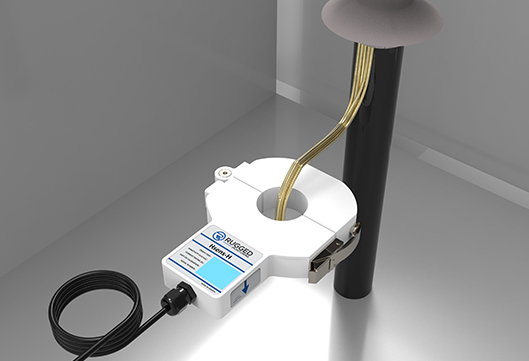

Benefits of Partial Discharge sensors

partial discharge sensor benefits
  • - Transient overvoltage protected
  • - Noise immunity
  • - IP65 rated
  • - Rigorously tested
  • - Split core for easy installation
  • - Stainless steel robust latch to keep split-core closed
  • - Customizable according to customer-specific applications
  • - Suitable for Online or Offline PD measurements

Technical Specifications

TypeSplit core
Typical Frequency Response (-6dB)100 KHz - 25 MHz
MaterialRugged plastic (Black), other options available
Current Ratings50A , other options available
HFCT-3220mm (L) x 118mm (W) x 33mm (H) (ID = 30mm)
HFCT-5220mm (L) x 163mm (W) x 28mm (H) (ID = 50mm)
HFCT-9265mm (L) x 200mm (W) x 38mm (H) (ID = 90mm)
HFCT-14330mm (L) x 275mm (W) x 38mm (H) (ID = 140mm)
Signal TypeRG223
Signal ConnectorsCable gland (Sensor End) and TNC connector (Monitor End), other options available
Signal Cable Length5m, other options available
IP RatingIP65
Ambient Temperature-30C - 70C
Storage Temperature-40C - 85C
CustomizationProvided as per customer requirements(Optional)

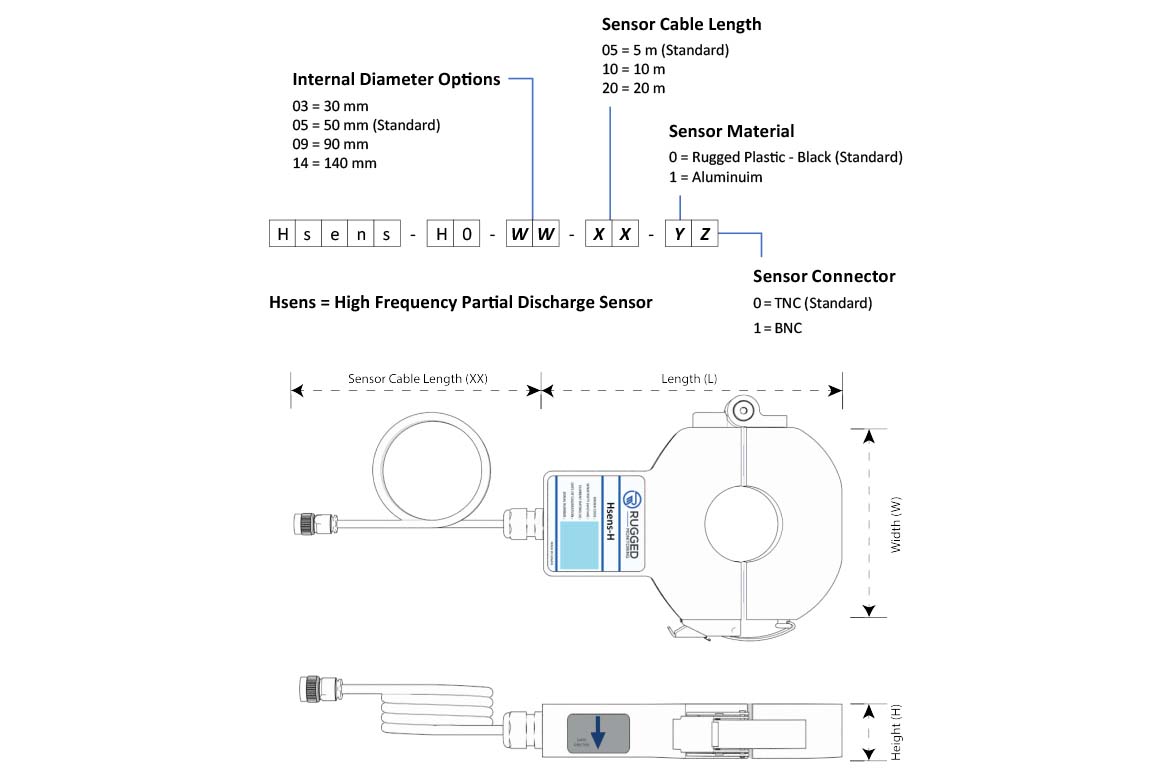

Ordering Code
