LSENSC

LSENSC

A multiple use fiber optic temperature sensor for measurement in a wide range of demanding applications, where immunity to electromagnetic fields is mandatory.

Related Verticals

  • E-MOBILITY

    Rugged fiber optic temperature sensors for E-Mobility applications including Aerospace, Automotive and Battery testing applications.

    LEARN MORE
  • MEDICAL

    High performing rugged fiber optic temperature sensors for multitude of medical applications like MRI, PET Scans, Neo natal and medical components.

    LEARN MORE
  • INDUSTRIAL

    Rugged fiber optic temperature sensors designed for reliability. Delivers the best long term reliability and are intrinsically safe

    LEARN MORE
  • RESEARCH LABS

    Costomizable fiber opic temperature sensors with superior performance for cutting edge research applications

    LEARN MORE

Summary Products

A multiple use fiber optic temperature sensor for measurement in a wide range of demanding applications, where immunity to electromagnetic fields is mandatory.

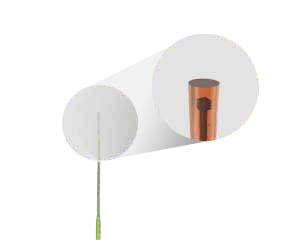

  • Small tip Polyimide, protected
  • Outstanding repeatability with High flexibility
  • Complete immunity to RFI, EMI, NMR and microwave radiation
  • Does not require recalibration or complex inputs to operate
  • Cryogenic temperature range  ( as low as 4 °Kelvin )

Description

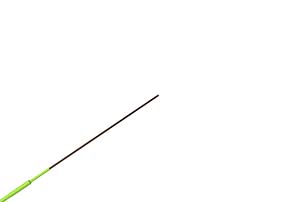

A multiuse fiber optic temperature sensor designed for a wide range of applications, especially for the use in demanding applications. The sensor offers complete immunity to RFI, EMI, NMR and microwave radiation. The standard temperature sensor has a response time of 0.2 s. With a standard deviation of +/-0.2 °C it allows precise and repeatable measurements. The coating of the temperature sensor is made of PTFE, and the fiber tip has  0.3 mm x 0.3 mm area with a Polyimide coating. The fiber optic probe consists of a PTFE protected glass fiber and a GaAs-crystal (Gallium Arsenide) at the sensor tip. It is totally free of metal and is immune to external fields. Therefore, the probes are explicitly suitable for use in large temperature ranges as well as in aggressive operating environments. The sensor length can be from several meters to 1 kilometer in length without impacting the accuracy of the measurement result. Other sensor lengths and connector types are available upon request.

Applications

  • Electric Vehicle and Battery Testing
  • Cryogenic and vacuum environment Available ( Optional )
  • RF and Microwave drying applications
  • Chemical and Process Industries
  • Medical applications
  • Nuclear and hazardous environments
  • High voltage environments

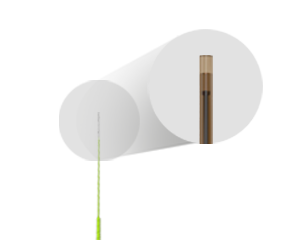

Benefits

  • Sensors do not require any recalibration
  • Suitable for OEM-type applications
  • Customizable according to customer specific applications
  • Available in different cables and sheath options
  • Robust fiber optic temperature sensor
  • Optional spiral wrap
  • No shift over time, high stability

Technical Specifications

Temperature rangeDown to 4 °K / Up to +85 °C
Repeatability0.2 °C
Accuracy absolute temperature+/- 0.8 °C
Accuracy relative temperature+/- 0.2 °C
Probe sheathing materialTeflon Coated, except for the sensor tip
ConnectorStainless Alloy / Optional - Dielectric
Response timeUp to 0.2 Sec
Probe sensitive area - Diameter 0.7 mm
Protective Tube - DiameterTeflon / 1.4 mm
LongevityProbe accuracy & repeatability constant over time

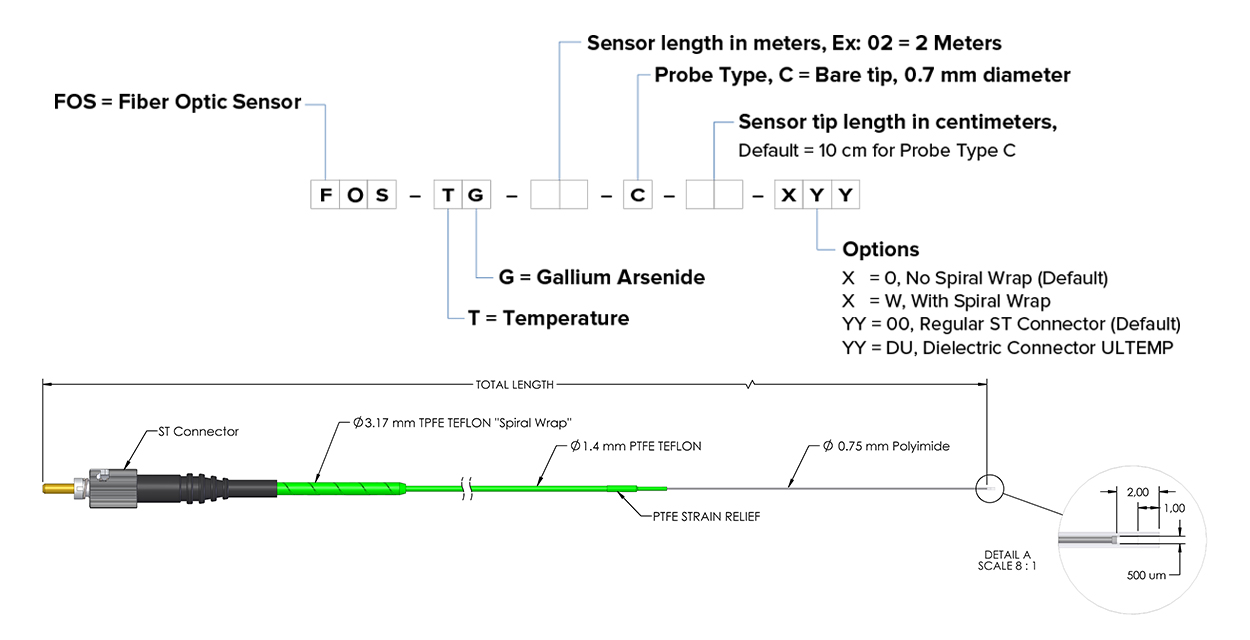

Ordering Code
